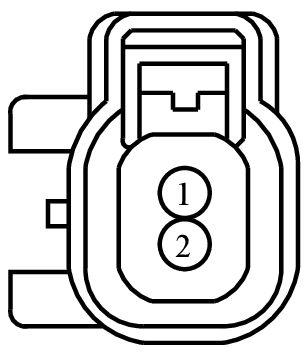

Connector End View (C1316) - WHEEL SPEED SENSOR, RIGHT FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1316	WHEEL SPEED SENSOR, RIGHT FRONT	BK	14290	2C204	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VCA05 (GY-VT)	20	SENSOR - WHEEL SPEED RIGHT FRONT	N/A
2	RCA19 (VT)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-984

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BXAB

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• A/C Compressor Clutch
• EGR Cooler Outlet
• Electronic Locking Differential
• Horn
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Lamp - Rear Park
• Lamp - Reverse
• Lamp - Side Marker
• Motor - Adjustable Pedal
• Sensor - Adjustable Pedal
• Sensor - Brake Fluid Level
• Sensor - Cam Shaft Position
• Sensor - Cylinder Head Temperature
• Sensor - Exhaust Gas Temperature
• Sensor - Liftgate Obstacle
• Sensor - Oil Level
• Sensor - Output Shaft Speed
• Sensor - Speed
• Solenoid - Engine Variable Timing
• Speaker - Door
• Speaker - Front
• Speaker - Rear
• Speaker - Subwoofer
• Speaker - Tweeter - LH - Front
• Switch - A/C Compressor Clutch Cycling
• Switch - Backup Lamp
• Switch - Deck Lid / Hatch Release
• Switch - Deck Lid / Lift Gate Ajar
• Switch - Hood Ajar
• Switch - Lift Gate Glass Ajar
• Switch - Power Liftgate
• Switch - Reverse Park Aid
