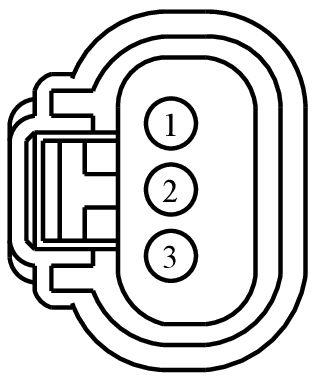

Connector End View (C1139) - CRANKSHAFT POSITION (CKP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1139	CRANKSHAFT POSITION (CKP) SENSOR	BK	12C508	6C315	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	N/A
2	VE711 (YE-VT)	20	SENSOR - CRANKSHAFT POSITION (CKP)	N/A
3	RE405 (GN-WH)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-990

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-ZB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
• Sensor - Fuel Tank Pressure Transducer
• Sensor - Turbine Shaft Speed
• Switch - Fuel Delivery Pressure
