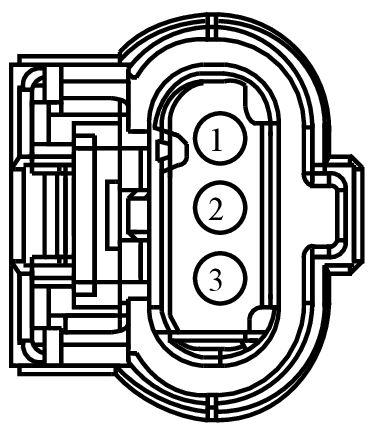

Connector End View (C1120) - CRANKSHAFT POSITION (CKP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1120	CRANKSHAFT POSITION (CKP) SENSOR	BK	12C508	6C315	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE711 (YE-VT)	18	SENSOR - CRANKSHAFT POSITION (CKP)	N/A
2	RE406 (GY-VT)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIGRTN)	N/A
3	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1492

Courtesy of FORD MOTOR COMPANY

Service Part Number:

HU2Z-14S411-BA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
• Monitor - Crankcase Ventilation
• Motor - Intercooler Pump
• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
• Sensor - Delta Pressure Feedback EGR
• Sensor - Exhaust Gas Pressure
• Sensor - Intake Manifold Runner Control
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Oil Pressure
