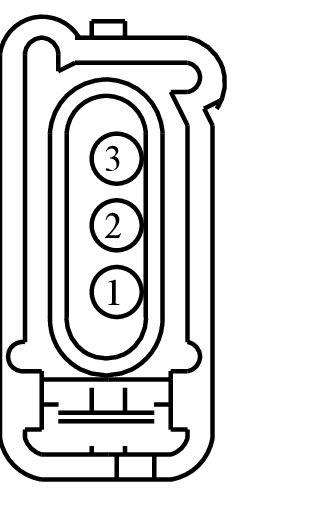

Connector End View (C1043) - PARK/TURN LAMP, RIGHT FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1043	PARK/TURN LAMP, RIGHT FRONT	13A323/14290			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-ADA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD123 (BK-GY)	20	GROUND - FENDER FRONT RIGHT	97BG-14474-ADA
2	CBP30 (YE-BU)	20	FUSE - 30 OR CIRCUIT BREAKER	97BG-14474-ADA
3	CLS25 (YE-VT)	20	SWITCH - HOOD # AJAR	97BG-14474-ADA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1167

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FHAB

Gauge:

16

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Lamp - Front Cornering/Turn
• Lamp - Front Park
• Lamp - Front Turn
• Lamp - Front Turn/ Marker
• Lamp - Headlamp - High/Low Beam
• Lamp - Park/Turn
• Lamp - Park/Turn/Stop
• Lamp - Rear Park
• Lamp - Reverse
• Lamp - Stop
