Connector End View (C9047) - TIRE PRESSURE MONITOR (TPM) MODULE
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C9047 | TIRE PRESSURE MONITOR (TPM) MODULE | BK | 14334 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | 3F2T-14474-SA | ||||
| 2 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | 3F2T-14474-SA | ||||
| 3 | VPL56 (BU-GY) | 22 | RECEIVER - REMOTE RF | 3F2T-14474-SA | ||||
| 4 | SBP09 (RD) | 22 | FUSE - 9 OR CIRCUIT BREAKER | 3F2T-14474-SA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | GD348 (BK-YE) | 22 | GROUND - PILLAR C OR QUARTER PANEL LEFT (BC3T) | 3F2T-14474-SA | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | * | * | Not Used | N/A | ||||

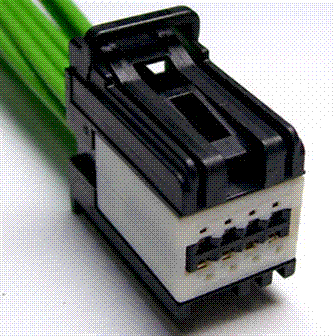

Available Pigtail Kits
Pigtail Kit Part Number WPT-1183
Service Part Number:
BU2Z-14S411-AGA
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Module - Tire Pressure
- Radio - Amplifier
