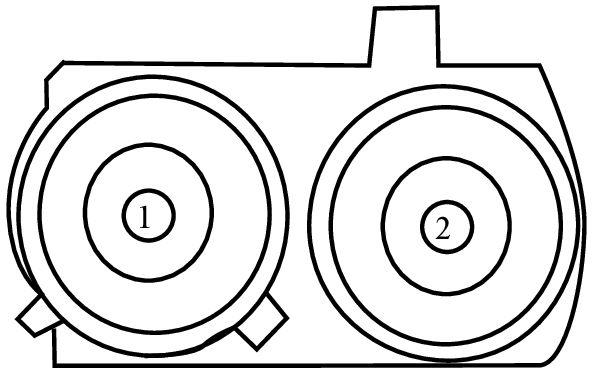

Connector End View (C9021B) - ANTENNA

Connector: Description Color Harness Base Part # Service Pigtail
C9021B ANTENNA none 14014 part# N/A Not Available
GFDWR30916Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 COAX (BK) 20 ANTENNA N/A
2 COAX (BK) 10 ANTENNA N/A
