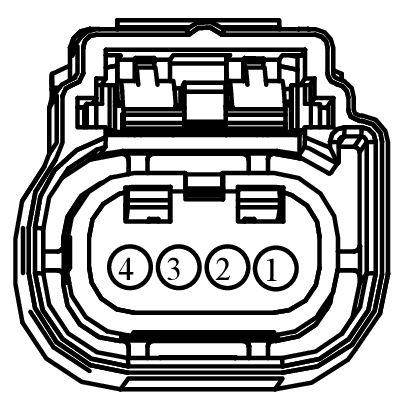

Connector End View (C4143) - LUGGAGE COMPARTMENT INTELLIGENT ACCESS (IA) ANTENNA

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4082	LUGGAGE COMPARTMENT INTELLIGENT ACCESS (IA) ANTENNA	GY	14N139	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VPK07 (VT)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK EXTERIOR +	N/A
2	RPK07 (GN-OG)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK EXTERIOR -	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A

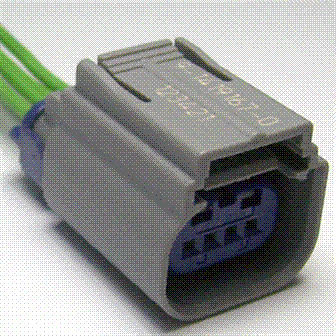

Available Pigtail Kits

Pigtail Kit Part Number WPT-1328

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AA

Gauge:

20

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Antenna - Keyless Entry
• Lamp - Charge Port
