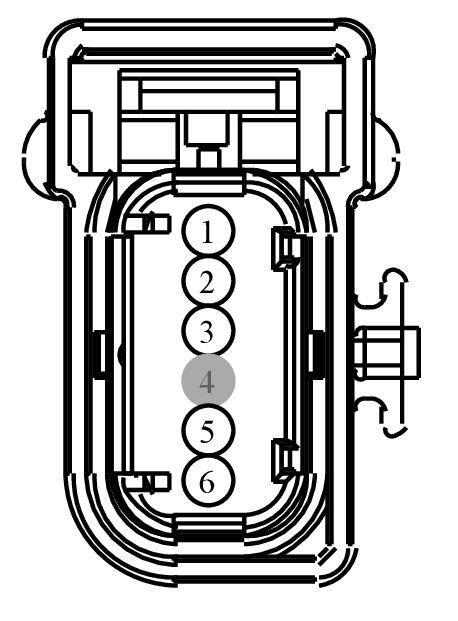

Connector End View (C4009) - BATTERY ENERGY CONTROL MODULE B (BECMB)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3733	BATTERY ENERGY CONTROL MODULE B (BECMB)	none	14401	14A464	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD374 (BK-WH)	20	GROUND - TUNNEL	N/A
2	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	N/A
3	CR194 (VT-WH)	20	#N/A	N/A
4	CBP41 (BU)	22	FUSE - 41 OR CIRCUIT BREAKER	N/A
5	- ()	*	Not Used	N/A
6	- ()	*	Not Used	N/A
7	- ()	*	Not Used	N/A
8	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
9	CBP22 (GN-OG)	20	FUSE - 22 OR CIRCUIT BREAKER	N/A
10	- ()	*	Not Used	N/A
11	SBP21 (GY-RD)	20	FUSE - 21 OR CIRCUIT BREAKER	N/A
12	- ()	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1125

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AMA

Gauge:

16

Pin material:

Silver

Cavities:

12

Vehicle Uses:

• Connector - Inline
• Mirror - Sideview
