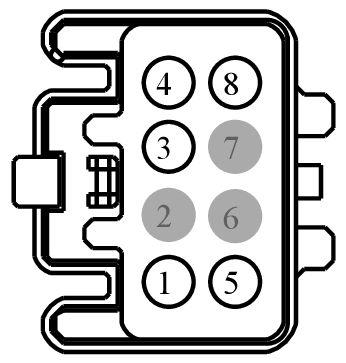

Connector End View (C3388A) - SEAT CONTROL SWITCH, DRIVER SIDE FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3387A	SEAT CONTROL SWITCH, DRIVER SIDE FRONT	LT GY	14D231	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14421-BBA	EU2Z-14421-EA	2.8
97BG-14421-BCA	EU2Z-14421-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	CPS23 (GN-VT)	18	SWITCH - SEAT ADJUST. DRIVER FORWARD	97BG-14421-BBA
3	CPS27 (BU-BN)	18	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP	97BG-14421-BBA
4	CPS28 (GN)	18	SWITCH - SEAT ADJUST. DRIVER REARWARD	97BG-14421-BBA
5	CPS26 (YE-BU)	18	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN	97BG-14421-BBA
6	*	*	Not Used	N/A
7	GD904 (BK-BU)	14	GROUND - DRIVER SEAT # SEAT SWITCH	97BG-14421-BCA
8	CPS30 (VT-BN)	18	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD	97BG-14421-BBA
9	CPS29 (WH-BN)	18	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD	97BG-14421-BBA
10	CPS24 (GY)	18	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN	97BG-14421-BBA
11	CPS25 (WH-VT)	18	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP	97BG-14421-BBA
12	CBX04 (WH-RD)	18	POWER - SEAT # MEMORY MODULE HIGH CURRENT	97BG-14421-BBA
