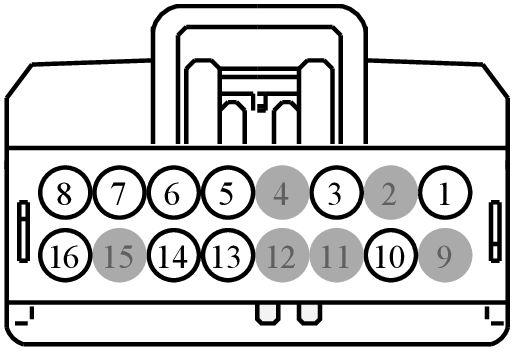

Connector End View (C3387A) - DRIVER MULTI-CONTOUR SEAT MODULE [SCMG]

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3385	DRIVER MULTI-CONTOUR SEAT MODULE [SCMG]	LT GY	14D232	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBX06 (GY-RD)	18	POWER - SEAT # HEATED SEAT MODULE	N/A
2	*	*	Not Used	N/A
3	CPT05 (YE)	20	# N/A	N/A
4	*	*	Not Used	N/A
5	CPS65 (WH-GN)	20	# N/A	N/A
6	CPS64 (BN-VT)	20	# N/A	N/A
7	VDB07 (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	N/A
8	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	N/A
9	*	*	Not Used	N/A
10	CPT36 (WH)	20	# N/A	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	CPS19 (GY-VT)	20	LUMBAR MOTOR RELEASE	N/A
14	CPS18 (BN-GN)	20	SWITCH - DRIVER LUMBAR PUMP	N/A
15	*	*	Not Used	N/A
16	GD904 (BK-BU)	18	GROUND - # SEAT SWITCH	N/A
