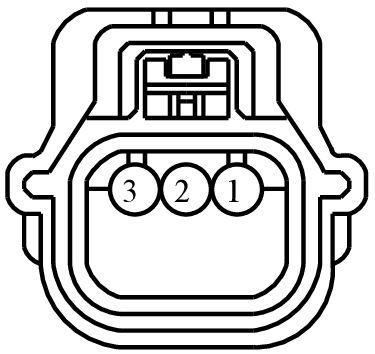

Connector End View (C3331) - OCS WEIGHT SENSOR BOLT 3
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3330 | OCS WEIGHT SENSOR BOLT 3 | BK | 14D230 | 61710 | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-MA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR153 (GN-WH) | 20 | CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) + | 9U5T-14474-MA | ||||
| 2 | RR153 (GY-BU) | 20 | CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) - | 9U5T-14474-MA | ||||
| 3 | VR226 (YE-GY) | 20 | SENSOR - OCCUPANT CLASSIFICATION WEIGHT (#3) | 9U5T-14474-MA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1400
Service Part Number:
9U2Z-14S411-CC
Gauge:
20
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Monitor - Crankcase Ventilation
- Sensor - Air Suspension
- Sensor - Front Park Aid (FPA)
- Sensor - Occupant Classification
- Sensor - Reverse Park Aide (RPA)
- Switch - A/C Compressor Clutch Cycling
- Switch - A/C High Pressure
Pigtail Kit Part Number WPT-1315
Service Part Number:
9U2Z-14S411-CB
Gauge:
20
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Monitor - Crankcase Ventilation
- Sensor - Air Suspension
- Sensor - Front Park Aid (FPA)
- Sensor - Occupant Classification
- Sensor - Reverse Park Aide (RPA)
- Switch - A/C Compressor Clutch Cycling
- Switch - A/C High Pressure
