Connector End View (C3189) - SEAT BACKREST HEATER MAT, RIGHT REAR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3170	SEAT BACKREST HEATER MAT, RIGHT REAR	GN	19K315	14D696	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD348 (BK-YE)	18	GROUND - PILLAR C OR QUARTER PANEL RIGHT (BC3T)	N/A
2	CHS75 (VT-OG)	18	HEATER - SEAT REAR RIGHT CUSHION/BACK	N/A

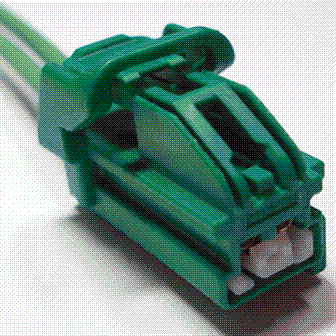

Available Pigtail Kits

Pigtail Kit Part Number WPT-1163

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JYB

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Lamp - Headlamp Switch
• Sensor - EATC In Car Temperature
• Solenoid - Brake Shift Park Interlock
• Switch - Brake Pressure
• Switch - Headlamp
• Switch - Neutral Tow
• Switch - Stop Lamp
