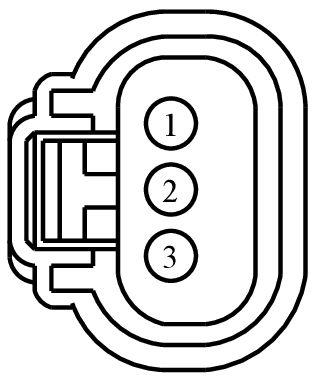

Connector End View (C3127) - FUEL TANK PRESSURE (FTP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3123	FUEL TANK PRESSURE (FTP) SENSOR	BK	14A005	9C052	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-ADA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE922 (VT-GN)	22	TRANSDUCER - FUEL TANK PRESSURE (FTP)	97BG-14474-ADA
2	RE230 (WH-VT)	22	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE (SIGRTN)	97BG-14474-ADA
3	LE230 (BN-BU)	22	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE REF. VOLT. (VREF)	97BG-14474-ADA

Available Pigtail Kits

Pigtail Kit Part Number WPT-990

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-ZB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
• Sensor - Fuel Tank Pressure Transducer
• Sensor - Turbine Shaft Speed
• Switch - Fuel Delivery Pressure
