Connector End View (C2988) - LOW GEAR SELECTOR SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2804	LOW GEAR SELECTOR SWITCH	BK	3E605	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBP35 (YE-GY)	22	FUSE - 35 OR CIRCUIT BREAKER	N/A
2	CET35 (BN)	22	SWITCH - TRANSMISSION DOWN SHIFT DEMAND (TDD)	N/A
3	*	*	Not Used	N/A

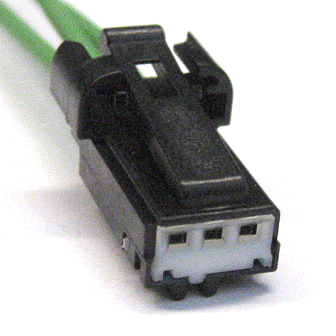

Available Pigtail Kits

Pigtail Kit Part Number WPT-911

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-LA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Fuse Panel Junction Block
• Lamp - Ambient Lighting
• Lamp - Front Park
• Lamp - Map
• Lamp - Park/Turn
• Lamp - PRNDL Indicator
• Lamp - Roof Marker
• Module - Driver Door
• Sensor - Speed
• Switch - Ambient Lighting Dimmer
