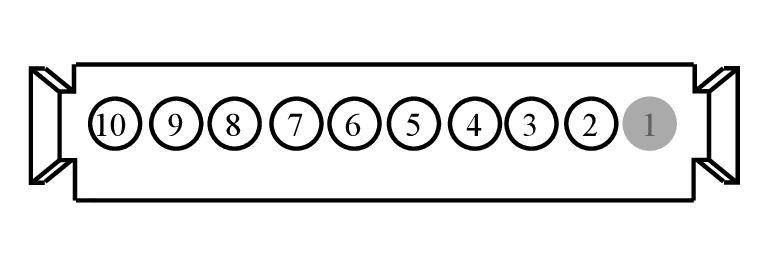

Connector End View (C2427) - STEERING COLUMN CONTROL MODULE (SCCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2414D	STEERING COLUMN CONTROL MODULE (SCCM)	N/A			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	* (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	N/A
3	* (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	N/A
4	* (*)	*	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN)	N/A
5	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3	N/A
6	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1	N/A
7	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4	N/A
8	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2	N/A
9	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)	N/A
10	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT)	N/A
