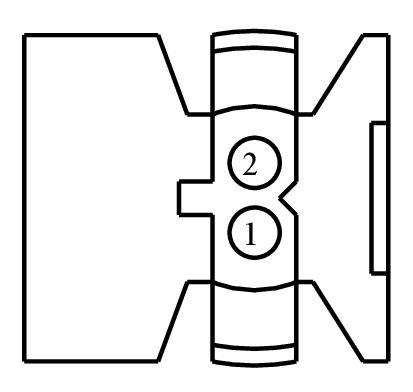

Connector End View (C2357A) - PASSENGER AIR BAG CANISTER VENT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2351	PASSENGER AIR BAG CANISTER VENT	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR144 (GY-OG)	20	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING +	NA
2	RR144 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING -	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1230

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BPA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Airbag - Side Curtain
• Squib - Airbag (Passenger)
