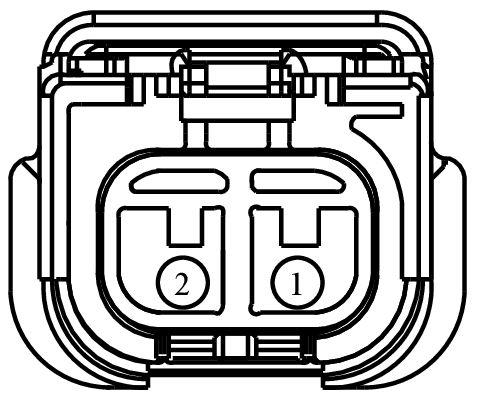

Connector End View (C462) - LICENSE PLATE LAMP, RIGHT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C462	LICENSE PLATE LAMP, RIGHT	BK	14N139	13550	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-ADA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBP40 (YE-GN)	18	FUSE - 40 OR CIRCUIT BREAKER	97BG-14474-ADA
2	GD347 (BK-VT)	18	GROUND - PILLAR C OR QUARTER PANEL LEFT (BC3T)	97BG-14474-ADA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1133

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-FA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Coil - Ignition
