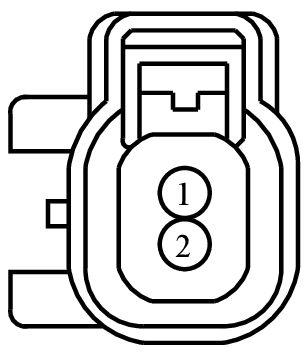

Connector End View (C440) - WHEEL SPEED SENSOR, LEFT REAR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C440	WHEEL SPEED SENSOR, LEFT REAR	BK	14A107	part# NA	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VCA04 (BU-OG)	20	SENSOR - WHEEL SPEED LEFT REAR	N/A
2	RCA18 (BN-GN)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-984

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BXAB

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• A/C Compressor Clutch
• EGR Cooler Outlet
• Electronic Locking Differential
• Horn
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Lamp - Rear Park
• Lamp - Reverse
• Lamp - Side Marker
• Motor - Adjustable Pedal
• Sensor - Adjustable Pedal
• Sensor - Brake Fluid Level
• Sensor - Cam Shaft Position
• Sensor - Cylinder Head Temperature
• Sensor - Exhaust Gas Temperature
• Sensor - Liftgate Obstacle
• Sensor - Oil Level
• Sensor - Output Shaft Speed
• Sensor - Speed
• Solenoid - Engine Variable Timing
• Speaker - Door
• Speaker - Front
• Speaker - Rear
• Speaker - Subwoofer
• Speaker - Tweeter - LH - Front
• Switch - A/C Compressor Clutch Cycling
• Switch - Backup Lamp
• Switch - Deck Lid / Hatch Release
• Switch - Deck Lid / Lift Gate Ajar
• Switch - Hood Ajar
• Switch - Lift Gate Glass Ajar
• Switch - Power Liftgate
• Switch - Reverse Park Aid
