Connector End View (C380) - POWER POINT, CONSOLE FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C380	POWER POINT, CONSOLE FRONT	GY	14B079	19N236	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
F8VB-14474-BA	EU2Z-14474-AA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB20 (GN-RD)	16	FUSE - 20 OR CIRCUIT BREAKER	F8VB-14474-BA
2	*	*	Not Used	N/A
3	GD375 (BK-BU)	16	GROUND - TUNNEL # 2ND POINT (BC3T)	F8VB-14474-BA

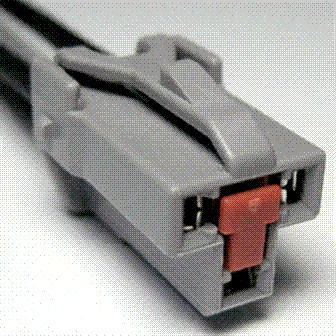

Available Pigtail Kits

Pigtail Kit Part Number WPT-1160

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-SJB

Gauge:

12

Pin material:

Tin

Cavities:

3

Vehicle Uses:

• Cigar Lighter
• Lamp - Ash Tray
• Power Point
