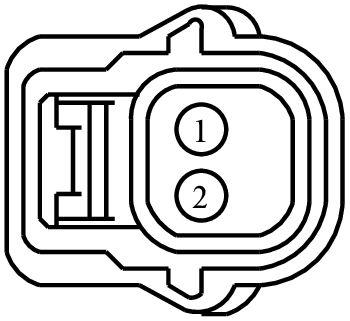

Connector End View (C356) - SEAT POSITION SENSOR, DRIVER

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C356	SEAT POSITION SENSOR, DRIVER	BK	14D231	14B416	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1L2T-14474-CA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RR137 (BU-GY)	20	COMMON RETURN	1L2T-14474-CA
2	VR215 (YE-VT)	20	SENSOR - SEAT TRACK POSITION DRIVER	1L2T-14474-CA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1314

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-AAC

Gauge:

20

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Crash (Engine Compartment)
• Sensor - Seat Track Position
• Sensor - Side Impact
• Solenoid - Down Shift
• Solenoid - Torque Control Coupling
• Valve - Heated PCV
• Valve - Heater Core Shut Off
• Valve - Transmission Fluid Warmer
