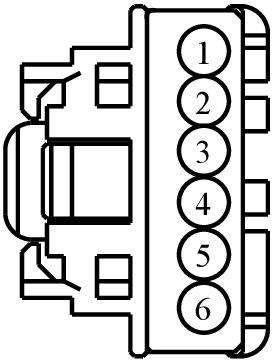

Connector End View (C321) - SEAT HEATED SWITCH, PASSENGER SIDE REAR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C321 | SEAT HEATED SWITCH, PASSENGER SIDE REAR | BK | 14B079 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-NA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD374 (BK-WH) | 22 | GROUND - TUNNEL (BC3T) | 3F2T-14474-SA | ||||
| 2 | CHS50 (BU) | 26 | CTRL MOD. - HOT/COLD SEAT # REAR RIGHT SELECT HIGH | 9U5T-14474-NA | ||||
| 3 | CHS52 (BU) | 26 | CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR HIGH | 9U5T-14474-NA | ||||
| 4 | CHS53 (WH) | 26 | CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR LOW | 9U5T-14474-NA | ||||
| 5 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | 3F2T-14474-SA | ||||
| 6 | CHS51 (YE) | 26 | CTRL MOD. - HOT/COLD SEAT # REAR RIGHT SELECT LOW | 9U5T-14474-NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1249
Service Part Number:
3U2Z-14S411-BYAC
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Lamp - Dome
- Lamp - Storage Compartment - Cargo
- Motor - Heater A/C Mode Door
- Motor - Heater/AC Blend Door
- Motor - Heater/AC Inlet Door
- Switch - Hazard Warning
- Switch - Heated Seat
- Switch - Heater A/C Blower (Rear)
- Switch - Speed Control
