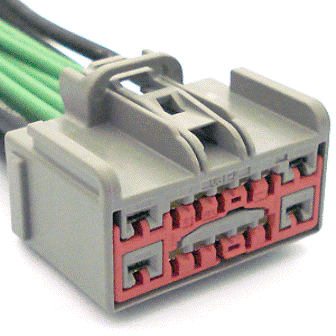

Connector End View (C316) - INLINE
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C316 | INLINE | LT GY | 1463214A005 | See Below | ||||

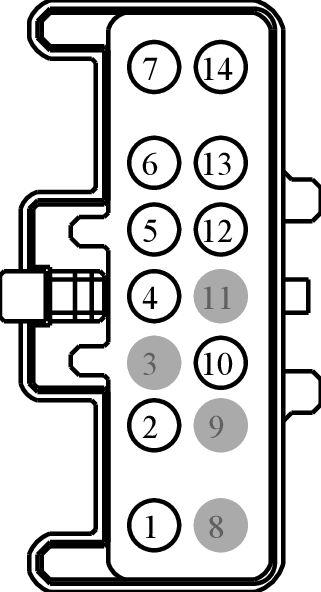

MALE
Harness
14632

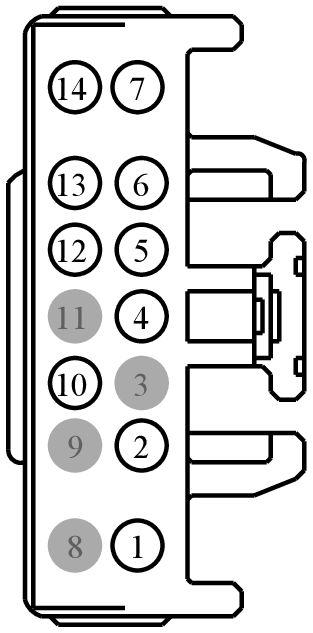

FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | CBP48 (GY-YE) | 12 | ||
| 2 | CPW14 (VT-WH) | 22 | ||
| 3 | * | * | ||
| 4 | CPW17 (BN-GN) | 22 | ||
| 5 | CPL11 (GY-BN) | 16 | 14A005 | |
| 5 | CPL11 (GY-BN) | 18 | 14632 | |
| 6 | VME12 (BN-WH) | 18 | ||
| 7 | CPL39 (YE) | 22 | ||
| 8 | * | * | ||
| 9 | * | * | ||
| 10 | CPW18 (GY-VT) | 22 | ||
| 11 | * | * | ||
| 12 | CPL52 (VT-GY) | 16 | 14A005 | |
| 12 | CPL52 (VT-GY) | 18 | 14632 | |
| 13 | RME12 (BN-BU) | 18 |
Available Pigtail Kits
Pigtail Kit Part Number WPT-955
Service Part Number:
3U2Z-14S411-BJAC
Gauge:
12 14 16
Pin material:
Tin & Silver
Cavities:
14
Vehicle Uses:
- Connector - Inline
