Connector End View (C254) - GLOVE BOX LAMP

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C254	GLOVE BOX LAMP	GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
F8DB-14474-HA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	F8DB-14474-HA

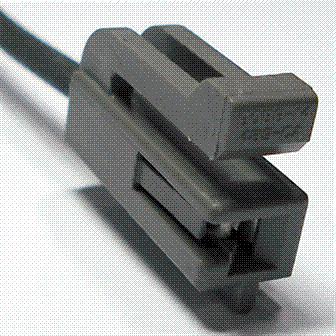

Available Pigtail Kits

Pigtail Kit Part Number WPT-1129

Courtesy of FORD MOTOR COMPANY

Service Part Number:

5U2Z-14S411-SB

Gauge:

12

Pin material:

Tin

Cavities:

1

Vehicle Uses:

• Alternator
• Lamp - Glove Box
• Switch - Door Ajar / Interior Lamp
