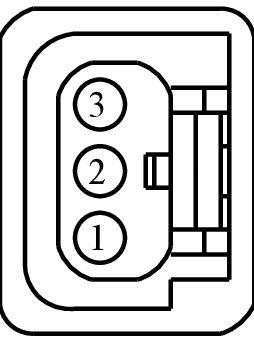

Connector End View (C180) - CAMSHAFT POSITION 11 (CMP11) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C180	CAMSHAFT POSITION 11 (CMP11) SENSOR	DK GY	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE458 (BU-WH)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF)	N/A
2	RE405 (GN-WH)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	N/A
3	VE706 (BN-BU)	20	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP11)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1205

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-KMB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Cam Shaft Position
• Sensor - Delta Pressure Feedback EGR
• Sensor - Fuel Tank Pressure Transducer
