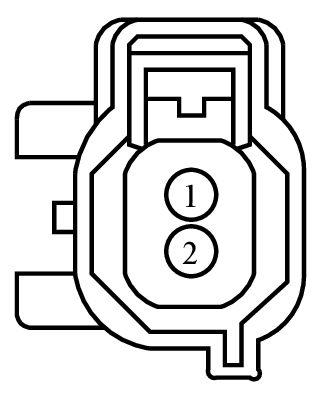

Connector End View (C150) - WHEEL SPEED SENSOR, LEFT FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C150	WHEEL SPEED SENSOR, LEFT FRONT	GY	14290	2C204	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VCA03 (VT-WH)	20	SENSOR - WHEEL SPEED LEFT FRONT	N/A
2	RCA17 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1116

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BJA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Lamp - Running Board
• Sensor - Knock
• Sensor - Speed
• Sensor - Water in Fuel
