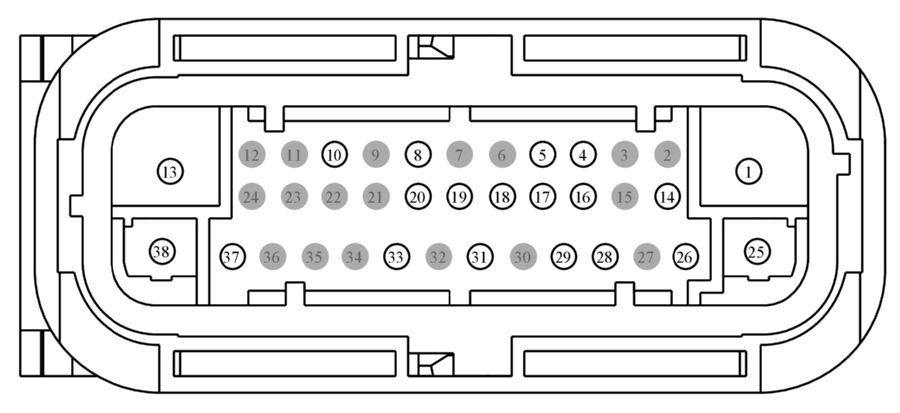

Connector End View (C135) - ANTI-LOCK BRAKE SYSTEM (ABS) MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C135	ANTI-LOCK BRAKE SYSTEM (ABS) MODULE	14290			19D798	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-CFA	KU2Z-14474-AA	6.3
CU5T-14474-EA	DU2Z-14474-CA	0.64
EU5T-14474-FA	EU2Z-14474-AA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB05 (GY-RD)	10	FUSE - 5 OR CIRCUIT BREAKER	97BG-14474-CFA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	RCA19 (VT)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT	CU5T-14474-EA
5	VCA36 (YE-GN)	20	CTRL MOD. - BRAKE BOOSTER CONTROL VALVE +	CU5T-14474-EA
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	RCA17 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT	CU5T-14474-EA
9	*	*	Not Used	N/A
10	RCA36 (GY-OG)	20	CTRL MOD. - BRAKE BOOSTER CONTROL VALVE -	CU5T-14474-EA
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	GD120 (BK-GN)	10	GROUND - FENDER FRONT LEFT	97BG-14474-CFA
14	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	CU5T-14474-EA
15	*	*	Not Used	N/A
16	VCA05 (GY-VT)	20	SENSOR - WHEEL SPEED RIGHT FRONT	CU5T-14474-EA
17	VCA06 (WH-OG)	20	SENSOR - WHEEL SPEED RIGHT REAR	CU5T-14474-EA
18	RCA18 (BN-GN)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR	CU5T-14474-EA
19	VCA03 (VT-WH)	20	SENSOR - WHEEL SPEED LEFT FRONT	CU5T-14474-EA
20	VCA24 (GN-OG)	20	CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS LOW	CU5T-14474-EA
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	SBB43 (BU-RD)	12	FUSE - 43 OR CIRCUIT BREAKER	EU5T-14474-FA
26	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	CU5T-14474-EA
27	*	*	Not Used	N/A
28	CBB92 (GN-WH)	20	FUSE - 92 OR CIRCUIT BREAKER	CU5T-14474-EA
29	RCA20 (BN)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR	CU5T-14474-EA
30	*	*	Not Used	N/A
31	VCA04 (BU-OG)	20	SENSOR - WHEEL SPEED LEFT REAR	CU5T-14474-EA
32	*	*	Not Used	N/A
33	VCA23 (BU-WH)	20	CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS HIGH	CU5T-14474-EA
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	LCA37 (YE-OG)	20	CTRL MOD. - SENSOR BRAKE VACUUM +	CU5T-14474-EA
38	GD120 (BK-GN)	12	GROUND - FENDER FRONT LEFT	EU5T-14474-FA
