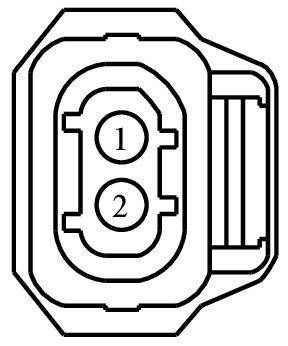

Connector End View (C119) - FUEL INJECTION PUMP

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C119	FUEL INJECTION PUMP	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE226 (GN-VT)	14	FUEL VOLUME REGULATOR RETURN (FVRRTN)	N/A
2	CE226 (YE-VT)	14	FUEL VOLUME REGULATOR (FVR)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1302

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ARA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Fuel Injector
• Pump - Fuel Injection
• Solenoid - Fuel Volume Regulator Control
