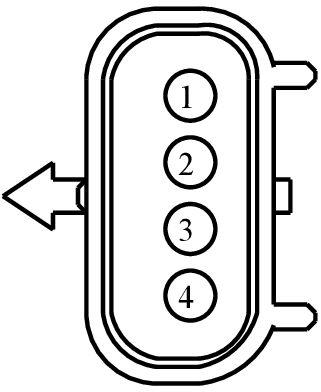

Connector End View (C109) - KNOCK SENSOR (KS)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C109	KNOCK SENSOR (KS)	BK	12C508	12A699	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE801 (VT-OG)	18	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+)	N/A
2	RE323 (WH-BN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1-)	N/A
3	VE802 (BN-BU)	18	SENSOR - KNOCK 2ND (KS2+)	N/A
4	RE324 (BN-GN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND (KS2-)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1220

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-AXA

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Sensor - Knock
