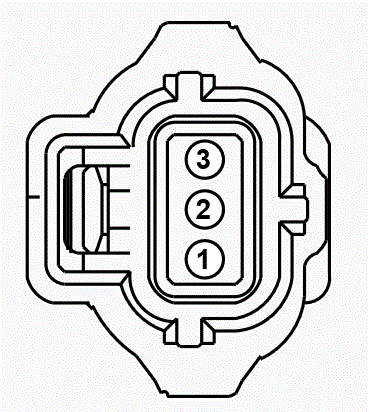

Connector End View (C102A) - GENERATOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C102A	GENERATOR	NA	14B060	10346	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CDC15 (VT)	20	GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI)	N/A
2	CDC10 (BU-OG)	20	CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC)
3	SBB58 (YE-RD)	16	FUSE - 58 OR CIRCUIT BREAKER

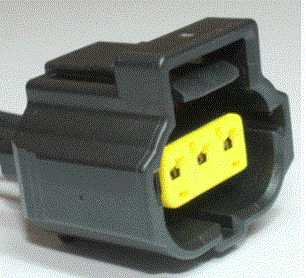

Available Pigtail Kits

Pigtail Kit Part Number WPT-118

Courtesy of FORD MOTOR COMPANY

Service Part Number:

1U2Z-14S411-TA

Gauge:

14

Pin material:

Tin

Cavities:

3

Vehicle Uses:

• Alternator
• Sensor - Brake Fluid Level
• Sensor - Throttle Position
