Trim Panels, Mouldings And Fasteners
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:

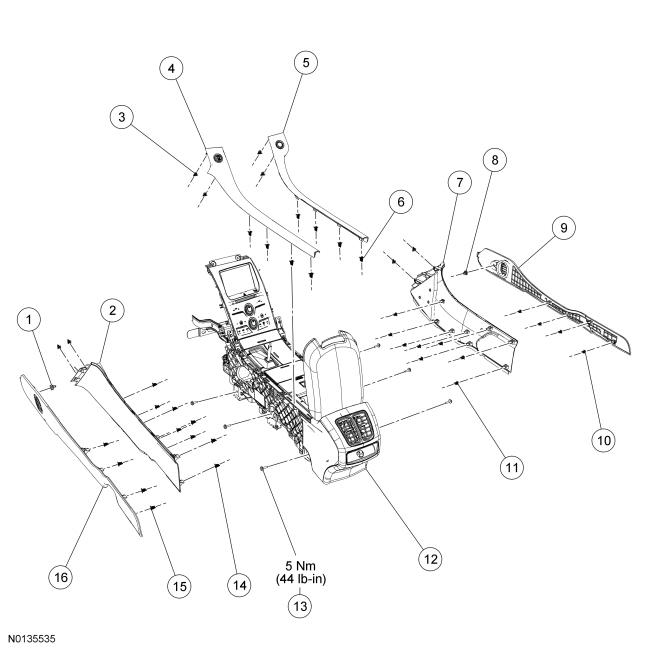

Floor console with navigation shown, floor console without navigation similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W713267 | Floor console LH lower trim panel pin-type retainer |
| 2 | 045M11 | Floor console LH upper trim panel |
| 3 | W710338 | Floor console LH finish moulding retaining clip (6 required) |
| 4 | 061A17 | Floor console LH finish moulding |
| 5 | 061A16 | Floor console RH finish moulding |
| 6 | W710338 | Floor console RH finish moulding retaining clip (6 required) |
| 7 | 045M10 | Floor console RH upper trim panel |
| 8 | W713267 | Floor console RH lower trim panel pin-type retainer |
| 9 | 04608 | Floor console RH lower trim panel |
| 10 | W710338 | Floor console RH lower trim panel retaining clip (4 required) |
| 11 | W710338 | Floor console RH upper trim panel retaining clip (10 required) |
