Rear Brake Disc: Removal

WARNING: Before beginning any service procedure in this service information, refer to Health And Safety Precautions

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. For additional information, Refer to Wheel and Tire .
NOTE: Do not allow the caliper to hang from the brake hose or damage to the hose can occur.

NOTE: Care must be taken when servicing rear brake components without disconnecting the parking brake cable from the brake caliper lever. Carefully position the caliper aside using a suitable support or damage to the parking brake cable end fittings may occur.

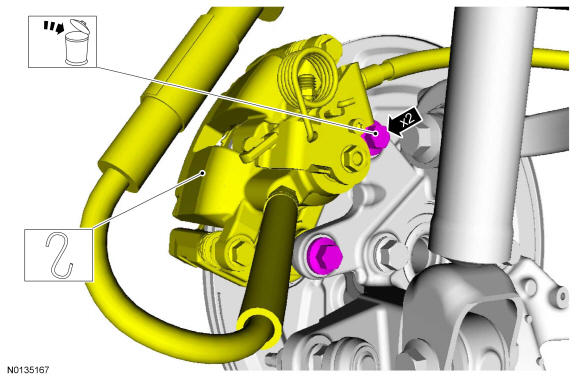

Relocate and support the component. Discard the specified component. Follow local disposal regulations.
- To install, tighten the new bolts to 150 Nm (111 lb-ft).
Courtesy of FORD MOTOR COMPANY

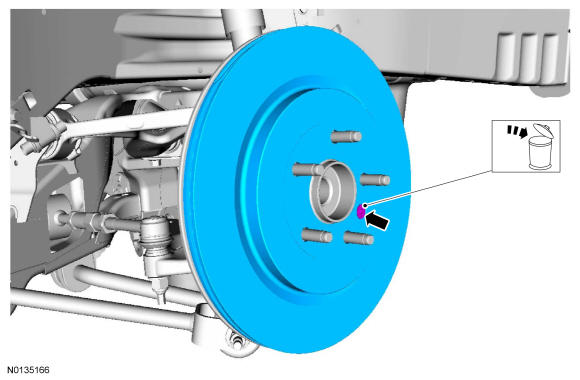

NOTE: If necessary, thread a M10 bolt into the brake disc removal hole and tighten to press the disc off the hub.

Discard the specified component. Follow local disposal regulations.
- To install, tighten the new screw to 20 Nm (177 lb-in).

Courtesy of FORD MOTOR COMPANY
