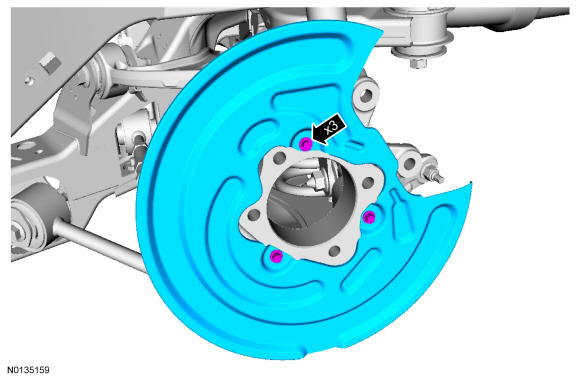

Rear Brake Disc Shield: Removal
For information on Ford Color Coded Illustrations refer to OEM Color Coding
WARNING:
Before beginning any service procedure in this service information, refer to Health And Safety Precautions
.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the wheel hub and bearing. For additional information, Refer to Wheel Bearing and Wheel Hub .
-
- To install, tighten to 15 Nm (133 lb-in).
