Rear Brake Caliper: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

WARNING: Before beginning any service procedure in this service information, refer to Health And Safety Precautions .

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

Release the parking brake cable tension. Refer to Parking Brake Cable Tension Release .

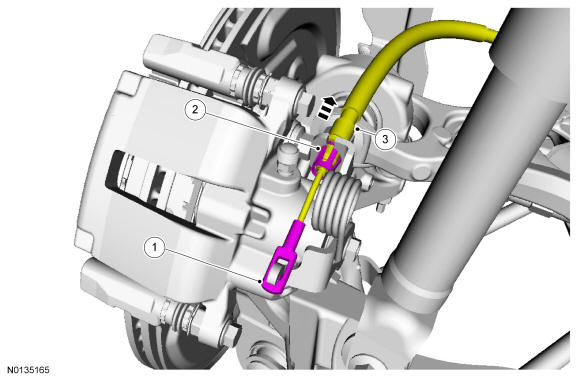

Disconnect the parking brake cable from the brake caliper lever and bracket.

Courtesy of FORD MOTOR COMPANY
Remove the brake flexible hose. Refer to Brake Flexible Hose in this service information.

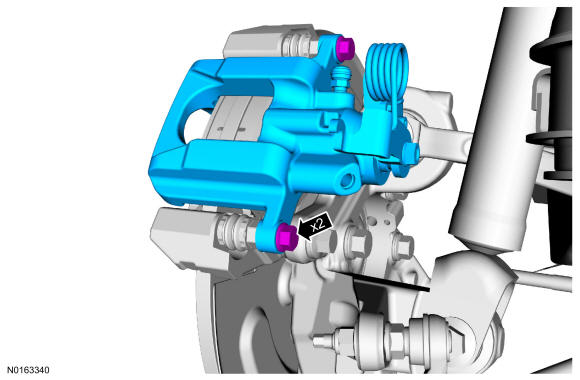

Remove the 2 bolts and the brake caliper.
- To install, tighten to 33 Nm (24 lb-ft).
Courtesy of FORD MOTOR COMPANY
NOTE: Brake pads with adhesive on the insulator are one-time use only. When the brake pads are separated from the brake caliper, new brake pads must be installed to prevent brake noise and shudder.

NOTE: For 345 mm (13.5 in) brakes, note the orientation of the inner and outer brake pads for reference during installation. Outer brake pads will have OTR stamped on the top of the backing. Inner brake pads (Police vehicles only) will have INR stamped on the top of the backing.

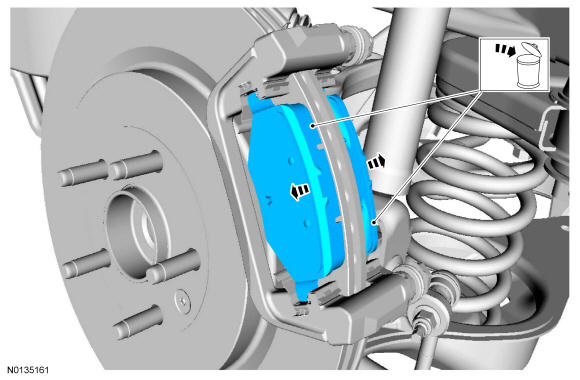

Remove and discard the brake pads.

Courtesy of FORD MOTOR COMPANY

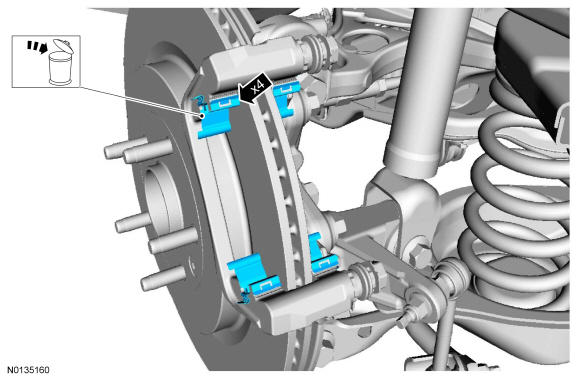

Remove and discard the brake pad clips.

Courtesy of FORD MOTOR COMPANY
