Rear Brake Caliper: Installation

NOTE: The brake pad-to-anchor plate contact points must be cleaned using a wire brush prior to installation of the brake pad slide clips or uneven brake pad wear may result.

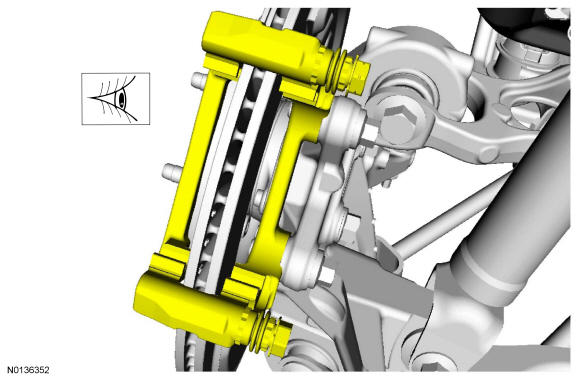

Clean and inspect the brake caliper anchor plate. Install a new anchor plate as necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: During installation, make sure that the brake flexible hose does not become twisted or damage to hose may occur.

NOTE: If equipped, verify correct installation of the brake flexible hose protective sleeve and tie strap.

To install, reverse the removal procedure.
- Bleed the brake system. Refer to Brake System Bleeding .
