Rear Brake Caliper Anchor Plate: Removal
For information on Ford Color Coded Illustrations refer to OEM Color Coding
WARNING:
Before beginning any service procedure in this service information, refer to Health And Safety Precautions
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake pads. For additional information, refer to Brake Pads in this service information.

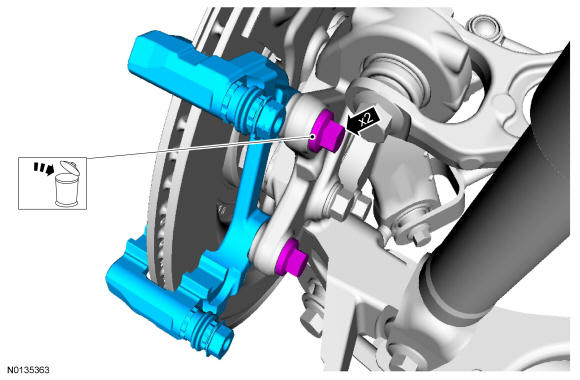

- Discard the specified component. Follow local disposal regulations.
- To install, tighten to 103 Nm (76 lb-ft).
