Front Brake Pads - 325 mm (13 in) Brakes: Removal

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Do not allow grease, oil, brake fluid or other contaminants to contact the pad lining material, or damage to components may occur. Do not install contaminated pads.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. For additional information, refer to Wheel and Tire .

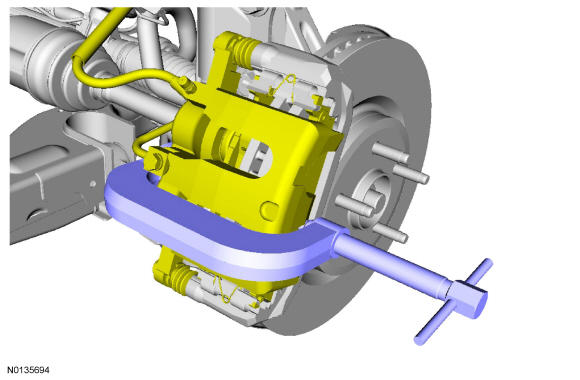

Using a C-clamp, compress the brake caliper pistons into the brake caliper housing.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not allow the brake caliper to hang from the brake flexible hose and or damage to the hose may occur.

NOTE: Make sure the brake caliper guide pin bolts are clean and free of debris or a binding condition may occur.

NOTE: Do not allow the brake flexible hose to get twisted when the caliper is repositioned on the brake caliper anchor plate or damage to the hose may occur.

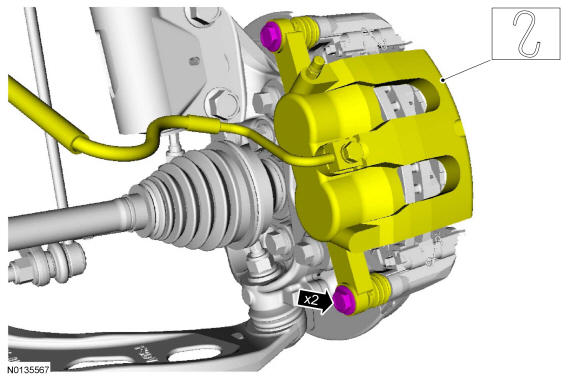

Remove the guide pin bolts and position the brake caliper aside.
- To install, tighten to 72 Nm (53 lb-ft).
Courtesy of FORD MOTOR COMPANY
NOTE: During installation, the coil in the center of the wire spreader spring must lie against the anchor plate and must not be in the raised position. If the coil in the center of the wire spreader spring does not rest against the caliper anchor plate, the spring is installed incorrectly and must be repositioned.

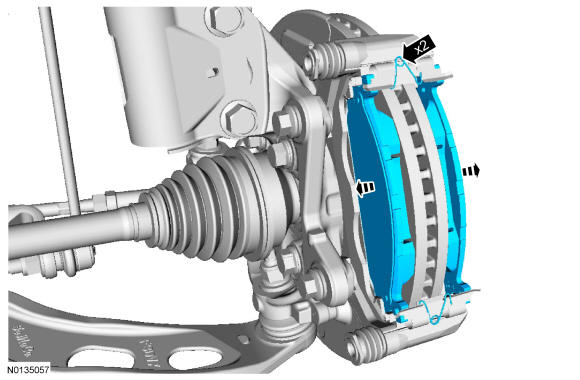

Remove the brake pads.

Courtesy of FORD MOTOR COMPANY

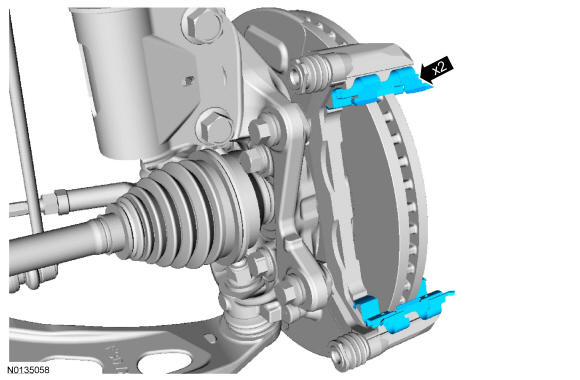

Remove the brake pad clips.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the caliper pin boots are correctly seated to prevent corrosion to the guide pins.

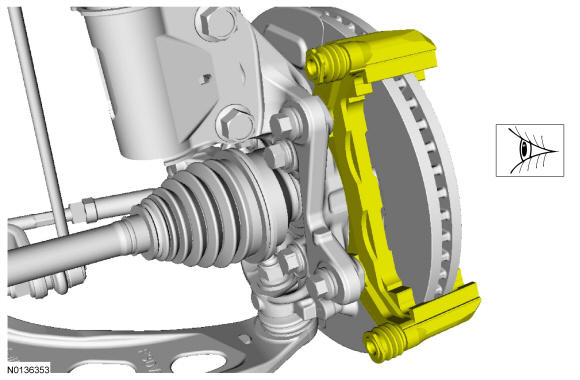

Inspect the brake caliper anchor plate and caliper pin boots. Install new components as necessary.

Courtesy of FORD MOTOR COMPANY
