Seat Cushion Thermo-Electric Device: Removal

NOTE: If the passenger seat is equipped with an Occupant Classification System(OCS) bladder system, to prevent system failure, it is necessary to carry out the OCS system reset when a front passenger seat cushion is disassembled, a new cushion cover is installed or an OCS system service kit is installed. A scan tool is used to carry out the OCS system reset.

NOTE: For component identification and locations, refer to Seat -- Exploded View, Front in this information.

Remove the seat. For additional information, refer to Seat -- Front in this information.
NOTE: Bottom view shows hidden retainers to be released from the top.

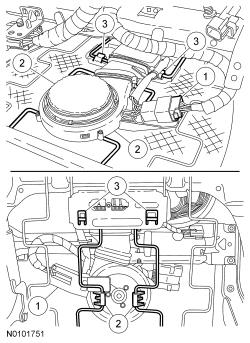

From under the seat, separate the cushion Thermo-Electric Device(TED).
1. Disconnect the electrical connector.
2. Disengage the 2 rear retainers.
  - Push one cushion support wire inboard while pushing the TED outboard. Repeat for the other retainer.
3. Disengage the front retainers.
Courtesy of FORD MOTOR COMPANY
Rotate and remove the cushion TED.
