Removal And Installation
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the rear seat cushion. Refer to Seat Cushion -- Rear .
-
- To install, tighten to 48 Nm (35 lb-ft).
-

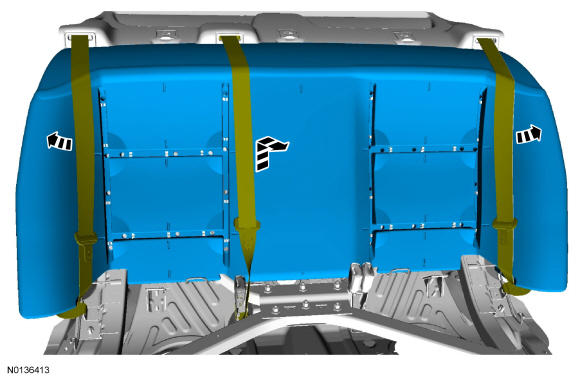

NOTE: Make sure the rear seat back has been released from the latches on both sides of the seat back.
-
NOTE: Move safety belts aside to ease the removal of the rear seat back.
- To install, reverse the removal procedure.
- After installation, make sure the safety belts are accessible.
