Bumper Cover - Rear: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking And Lifting .
2. Remove the rear taillamps. For additional information, refer to Exterior Lighting .

   Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

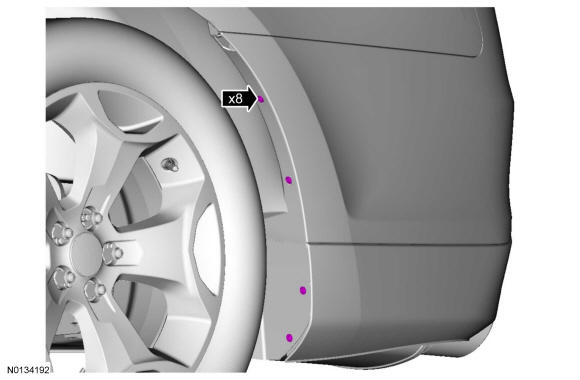

3. NOTE: Four on each side.

   Courtesy of FORD MOTOR COMPANY

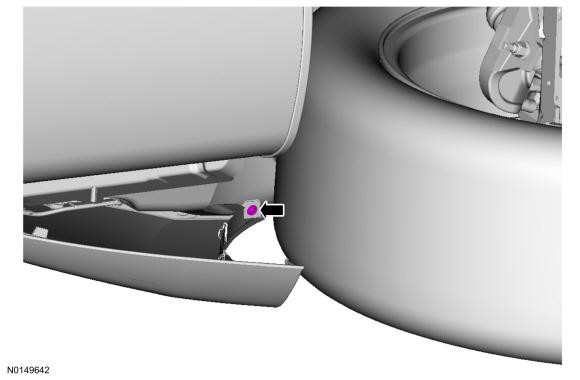

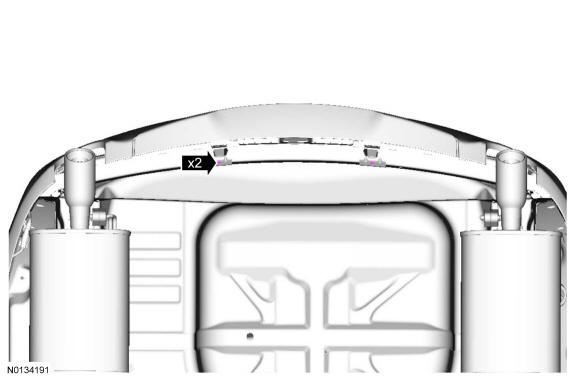

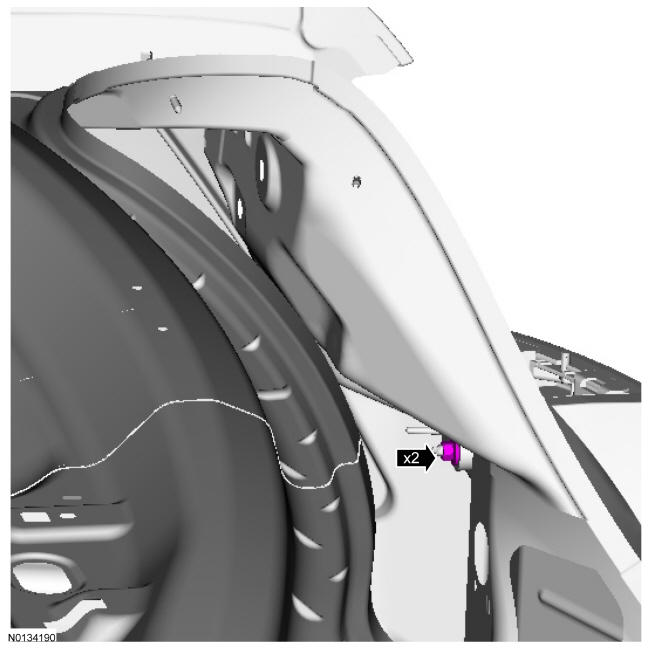

4. NOTE: On each side.

   Courtesy of FORD MOTOR COMPANY

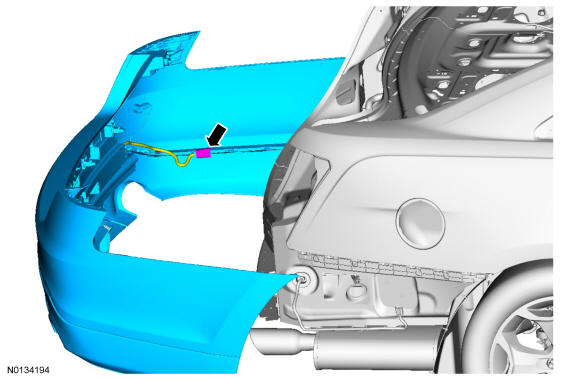

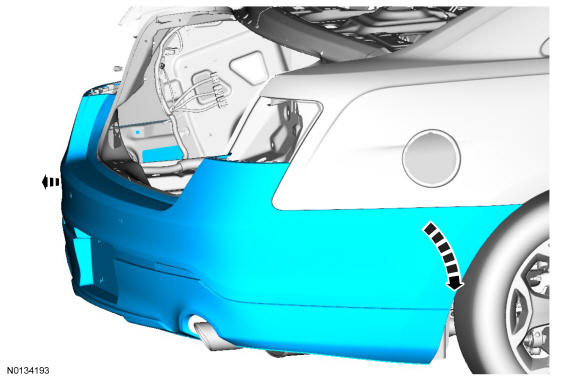

5. NOTE: Pull upward beneath the tail lamps to release the bumper cover upper clips.

   Courtesy of FORD MOTOR COMPANY

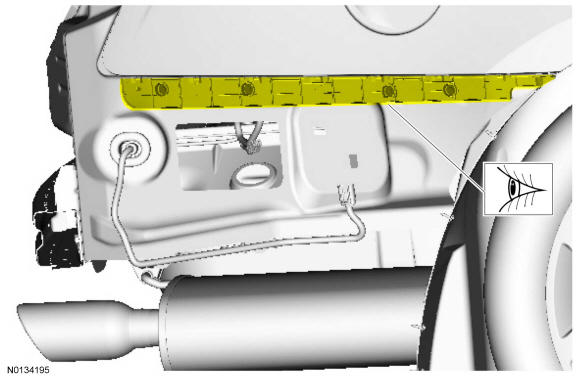

6. NOTE: Inspect the lower back sheet metal for distortion.

   Courtesy of FORD MOTOR COMPANY

7. NOTE: If necessary, install new bumper cover mounting reinforcements before installation.

Courtesy of FORD MOTOR COMPANY
