Bumper Cover - Front: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking And Lifting .

   Courtesy of FORD MOTOR COMPANY

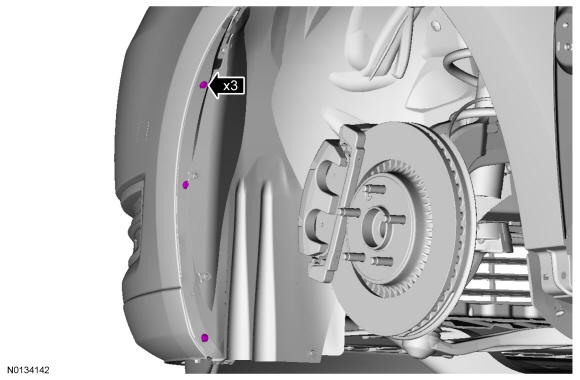

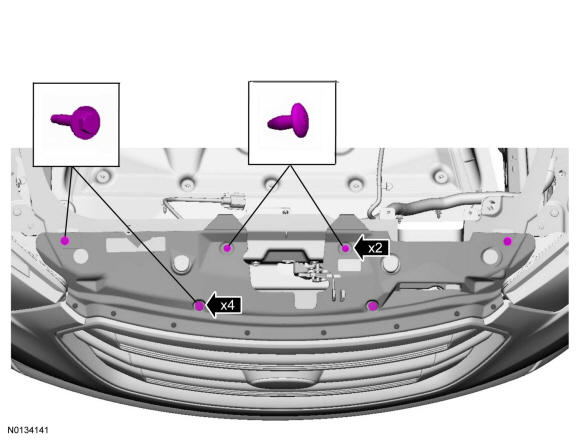

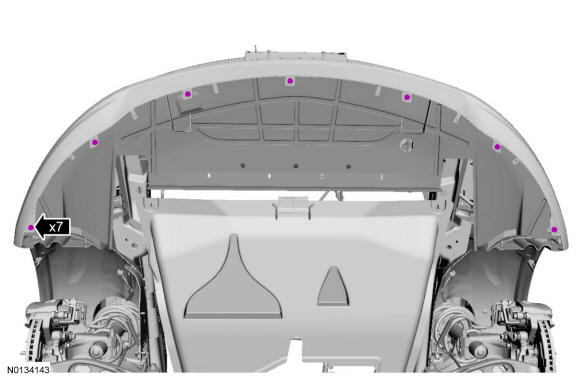

2. NOTE: Three on each side.

   Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

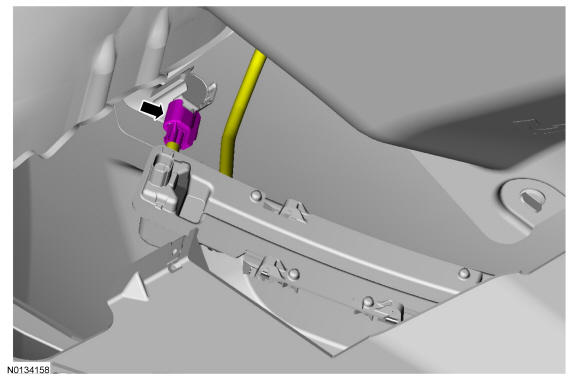

3. NOTE: If equipped.

   Courtesy of FORD MOTOR COMPANY

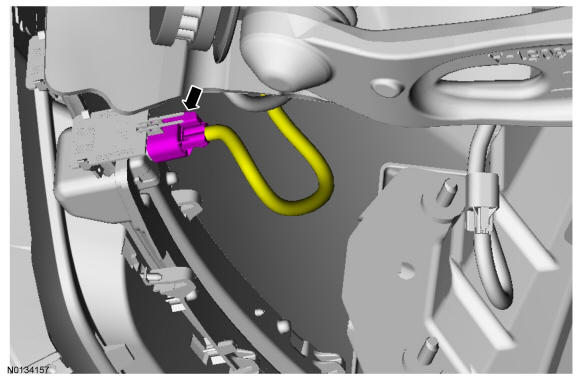

4. NOTE: If equipped.

   Courtesy of FORD MOTOR COMPANY

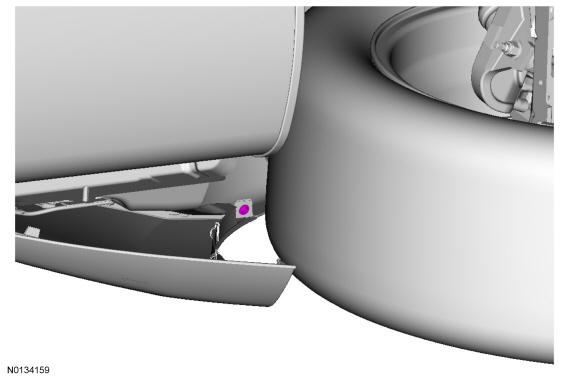

5. NOTE: One on each side.

   Courtesy of FORD MOTOR COMPANY

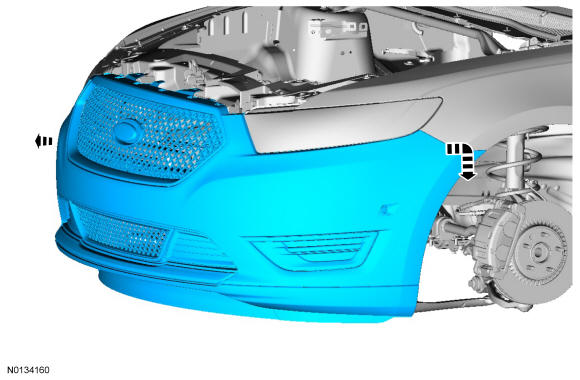

6. NOTE: The rearward upper portion of the bumper cover must be pulled outward and downward to unclip it from the fender.

   Courtesy of FORD MOTOR COMPANY

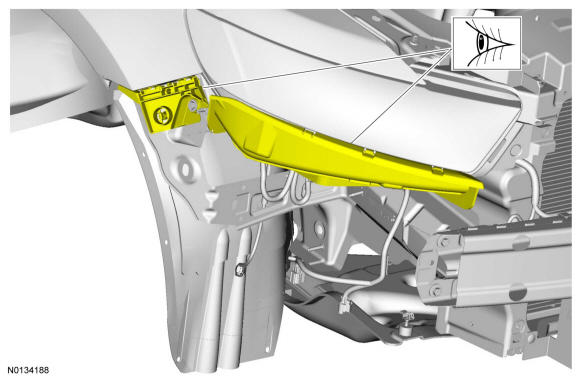

7. If necessary, install new bumper cover mounting brackets.

Courtesy of FORD MOTOR COMPANY
