Bumper - Rear: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

1. Remove the rear bumper cover. For additional information, refer to Bumper Cover -- Rear .

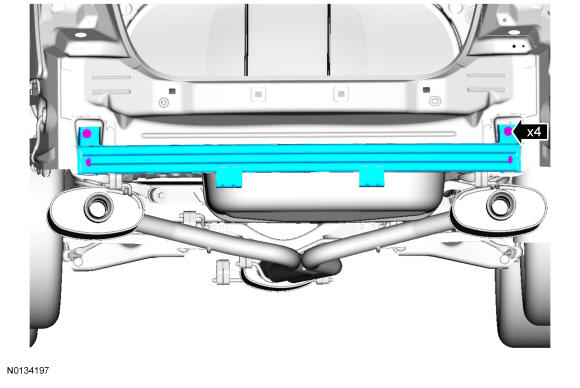

2. NOTE: Inspect the rear bumper double-ended studs for damage. If necessary, install new rear bumper double-ended studs.
   NOTE: Anytime the rear bumper nuts are removed, it is necessary to re-tighten the rear bumper double-ended studs.
   • Tighten the rear bumper nuts to 23 Nm (17 lb-ft).
   • Tighten the rear bumper double-ended studs to 12 Nm (106 lb-in).

Courtesy of FORD MOTOR COMPANY
