Seat Backrest - Front: Removal

All seats

1. Remove the seat. Refer to Seat -- Front .
2. Detach the carpet flap toe-kick retainers from under the seat.

   Courtesy of FORD MOTOR COMPANY

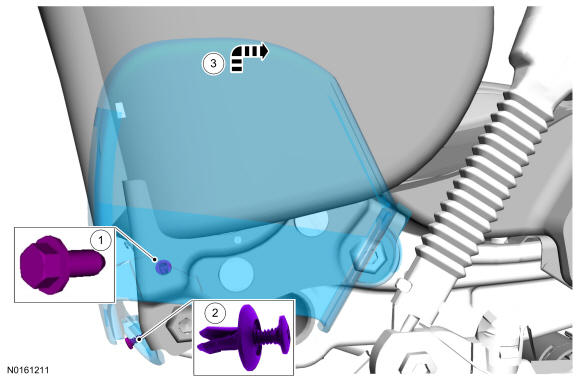

3. Remove the recliner cover.
   1. Remove the screw.
   2. Remove the scrivet.
   3. Lift and release the hook.

   Courtesy of FORD MOTOR COMPANY

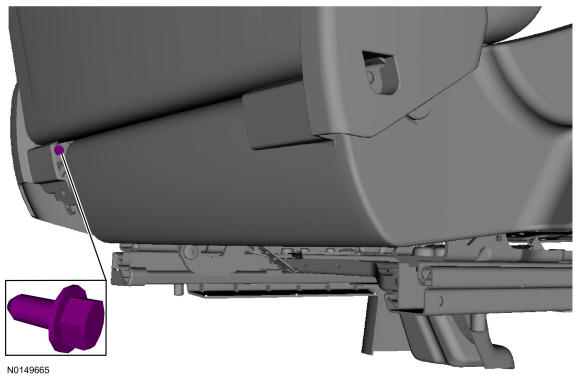

4. Remove the screw from the back of the side shield.

   Courtesy of FORD MOTOR COMPANY

   Power seats with manual lumbar

5. Release the retainers and remove the side shield.

   Courtesy of FORD MOTOR COMPANY

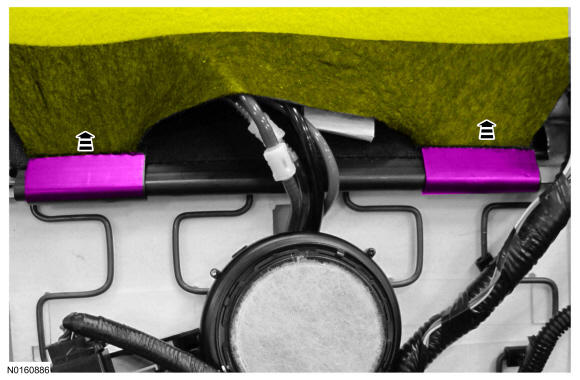

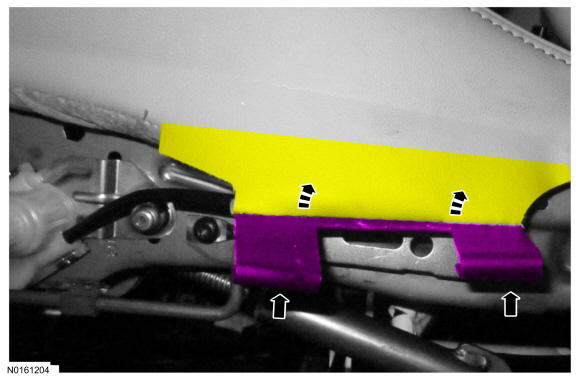

6. Detach the cushion cover outboard J-clips and position the cushion cover flap up.

   Courtesy of FORD MOTOR COMPANY

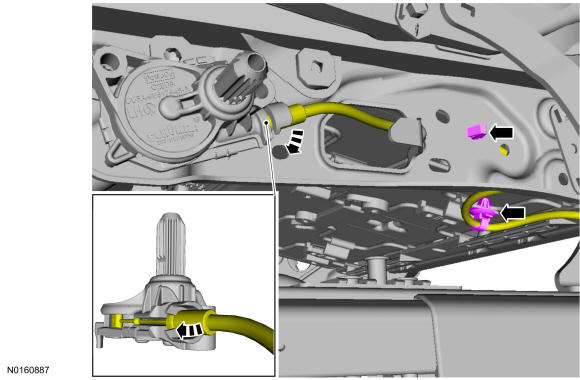

7. Remove the manual lumbar cable from the adjuster.
   1. Separate the cable retainers.
   2. Pull the cable cover out of the adjuster.

   Courtesy of FORD MOTOR COMPANY

   Multi-contour seats

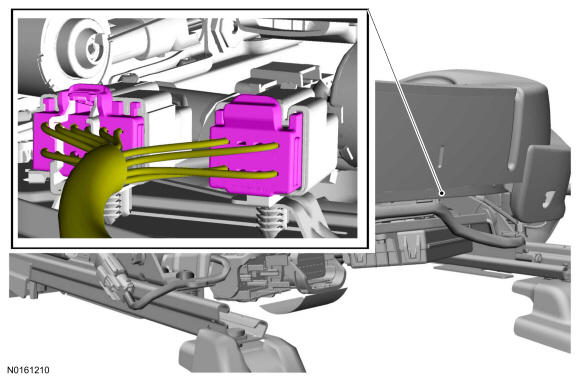

8. Disconnect the electrical connectors from under the seat.

   Courtesy of FORD MOTOR COMPANY

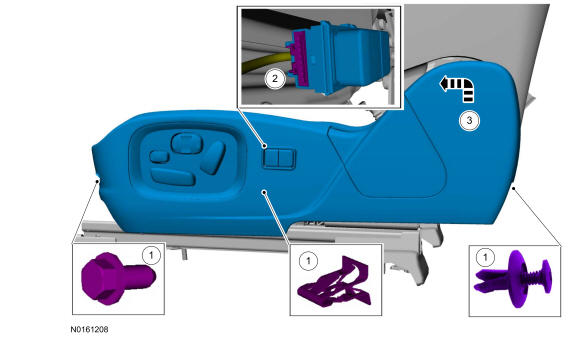

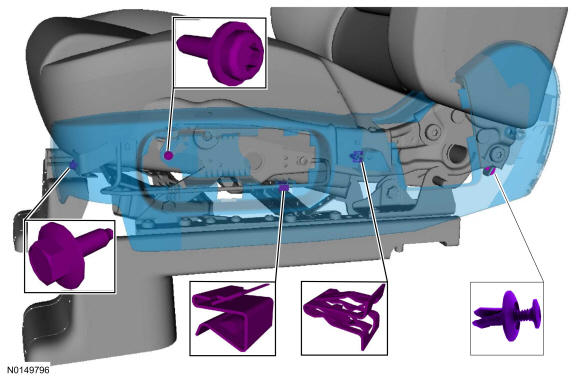

9. Remove the cushion side shield.
   1. Release the fasteners.
   2. Disconnect the memory set switch.
   3. Lift and slide the side shield forward to release.

   Courtesy of FORD MOTOR COMPANY

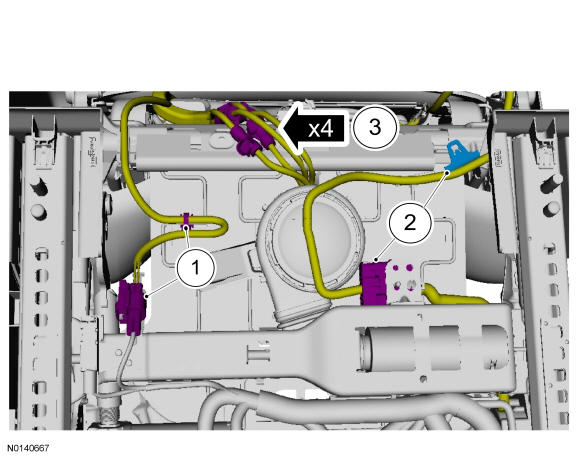

10. NOTE: Note the wire harness routing for installation

    Under the seat, disconnect the electrical connectors and multi-contour seat hoses.

    1. Disconnect the side airbag electrical connector.
    2. Disconnect backrest electrical connector and release the wire harness retainer.
    3. Separate the multi-contour seat hoses by pushing the release buttons and disconnecting.

    Courtesy of FORD MOTOR COMPANY

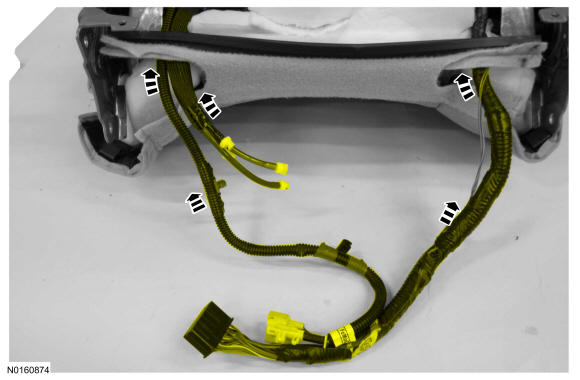

11. Route the wire harness(es) and air hoses out of the hole(s) in the carpet flap toe-kick.

    Courtesy of FORD MOTOR COMPANY

    6-way power seats

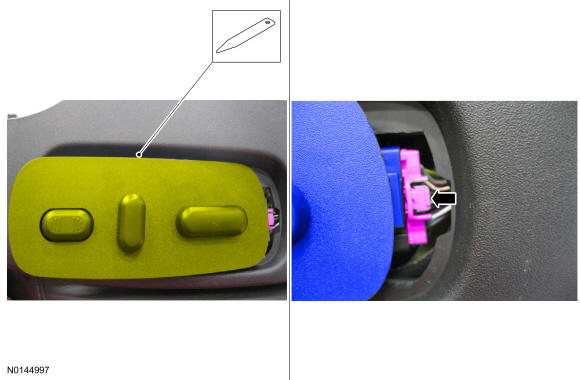

12. Remove the seat control switch.
    • Disconnect the wire harness connector from the seat control switch.

    Courtesy of FORD MOTOR COMPANY

13. Release the retainers and remove the cushion side shield.

    Courtesy of FORD MOTOR COMPANY

    Manual seats

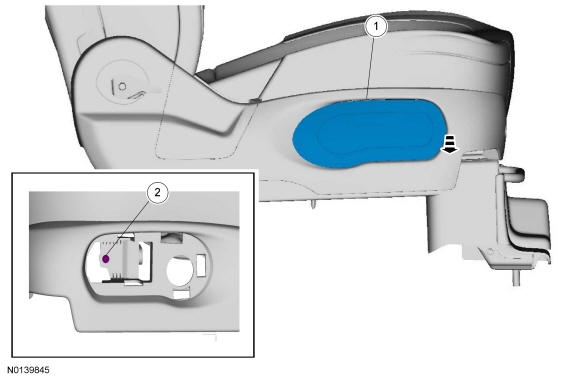

14. Remove the cushion side shield cover.
    1. Remove the cushion side shield cover.
    2. Remove the cushion side shield screw.

    Courtesy of FORD MOTOR COMPANY

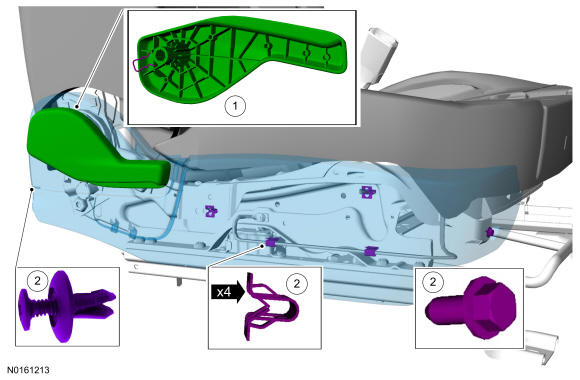

15. Remove the side shield.
    1. Release the retaining clip and remove the recline handle.
    2. Release the side shield fasteners.

    Courtesy of FORD MOTOR COMPANY

    All seats

16. WARNING: Use care when the seat back frame is removed and when releasing the recliners from a backrest upright position. The recliners are spring-loaded, which may cause the recliner upper arms to fold with significant speed/force. Failure to follow this instruction may result in serious personal injury.
    NOTE: Follow the unique instructions or graphic for this step in the installation.

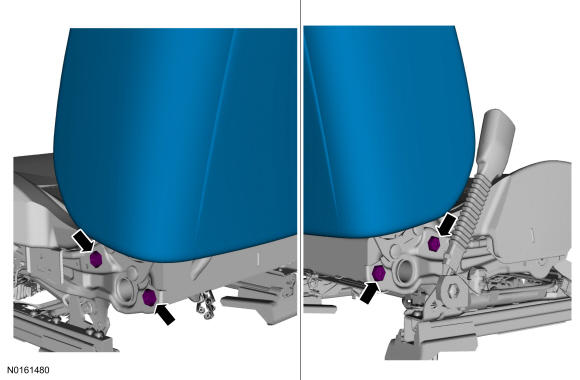

    Remove the 4 recliner-to-seat track bolts and remove the backrest assembly.

Courtesy of FORD MOTOR COMPANY
