Accessing Mounting Bolts On an Inoperative Power Seat

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

General Equipment

Drill(s)

WARNING: Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.

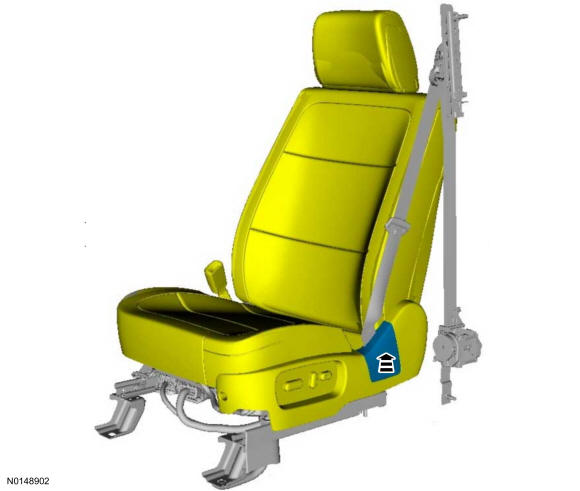

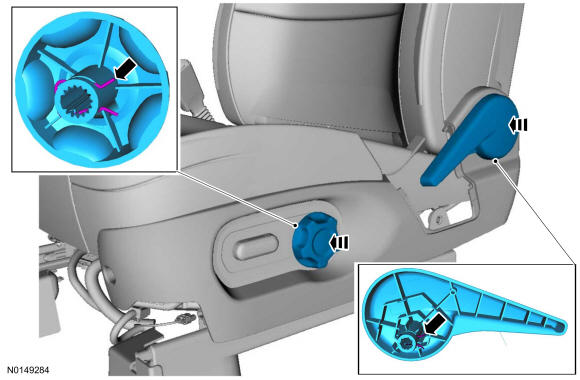

NOTE: Typical driver seat shown, other seats similar.

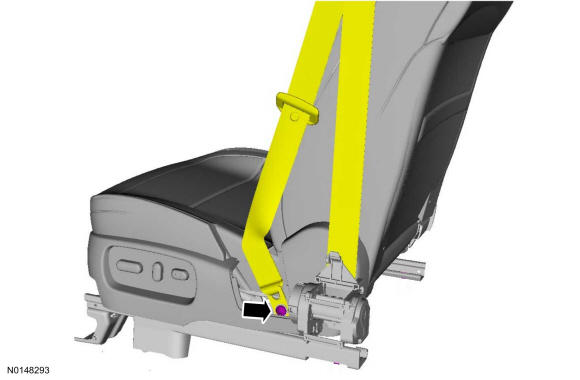

If equipped.

Courtesy of FORD MOTOR COMPANY

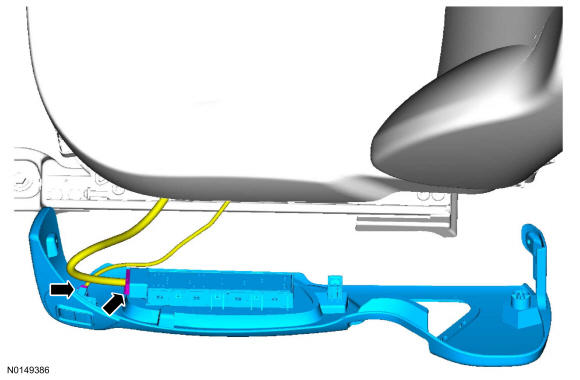

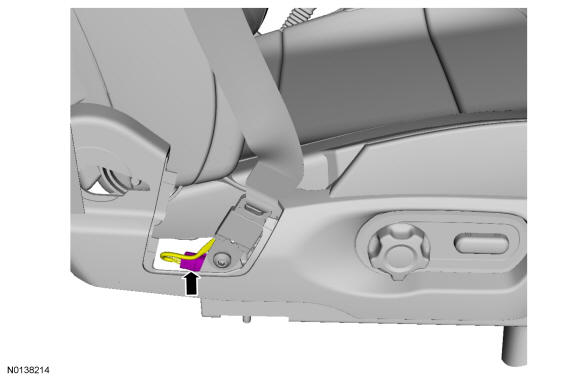

If equipped.

Courtesy of FORD MOTOR COMPANY
If equipped, passenger seat.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY
If equipped.

Courtesy of FORD MOTOR COMPANY

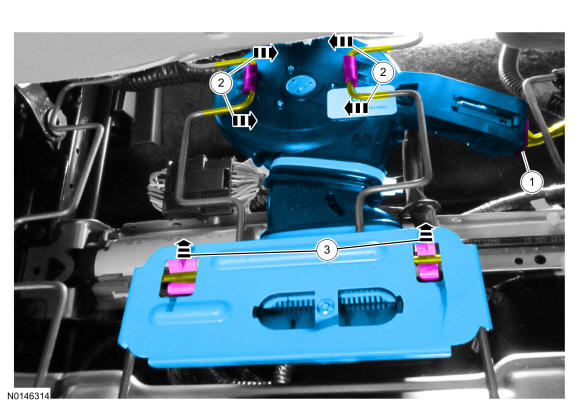

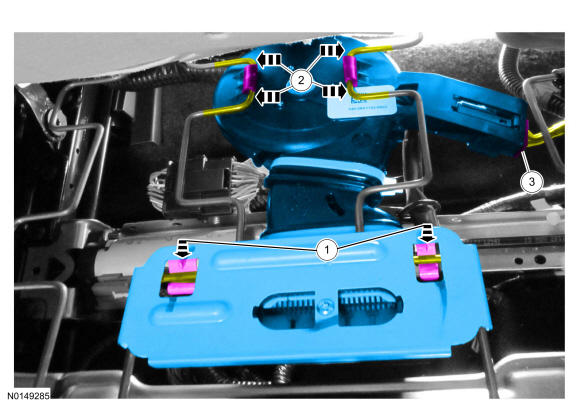

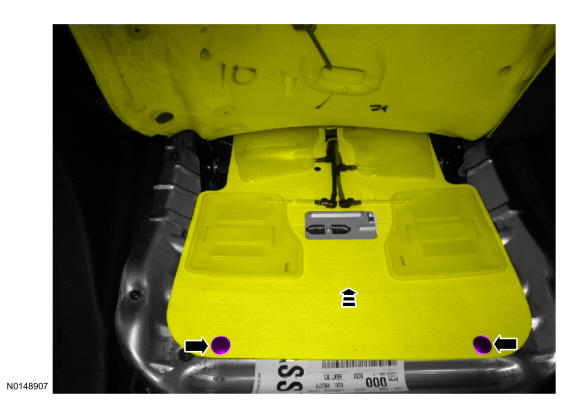

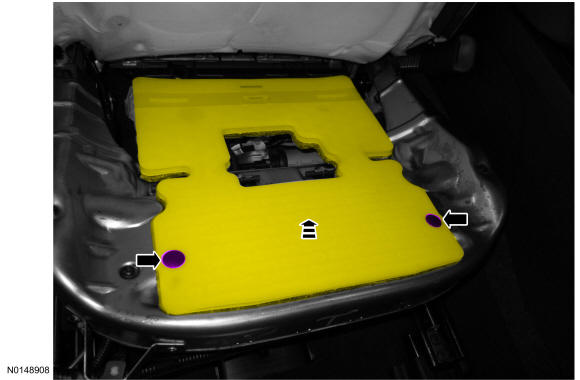

If equipped with Active Motion® massage.

Courtesy of FORD MOTOR COMPANY

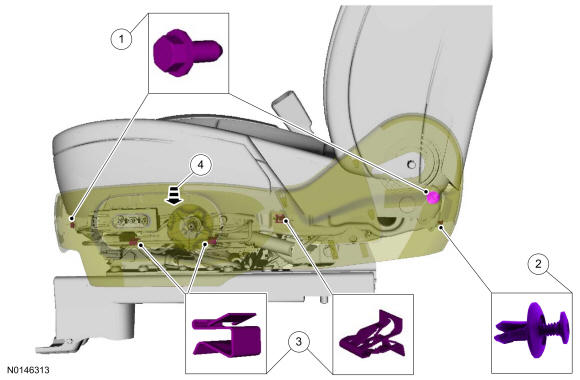

1. -
2. -
3. -
4. If equipped with Active Motion® massage.
Courtesy of FORD MOTOR COMPANY

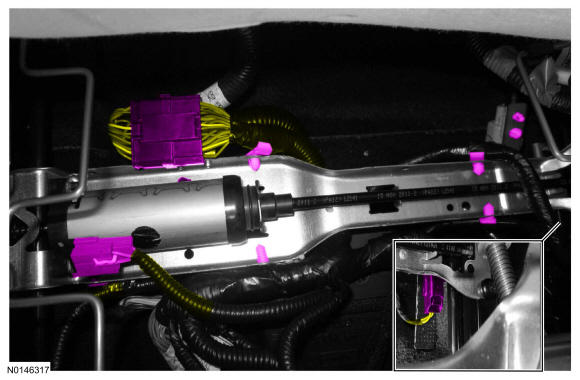

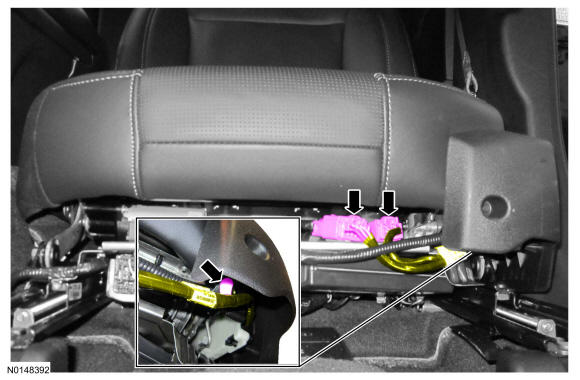

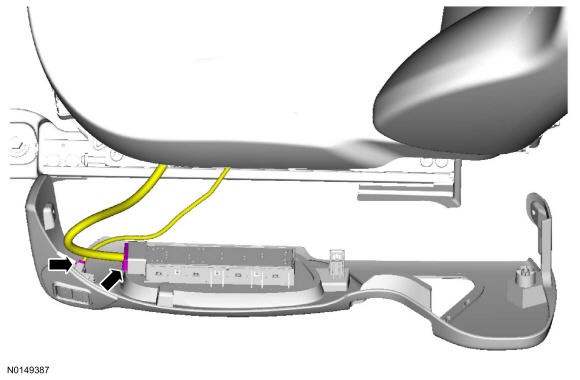

NOTE: Connectors and location may vary due to vehicle configuration.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

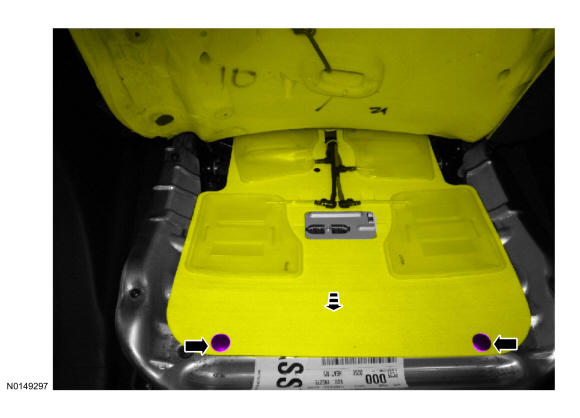

If equipped with Active Motion® massage.

Courtesy of FORD MOTOR COMPANY
If equipped, passenger seat with bladder OCS.

Courtesy of FORD MOTOR COMPANY
If equipped with climate controlled seats.

Courtesy of FORD MOTOR COMPANY

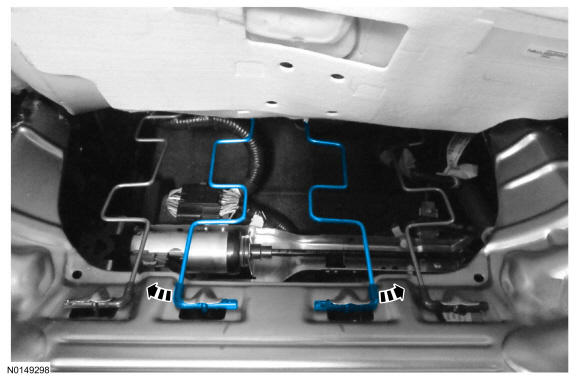

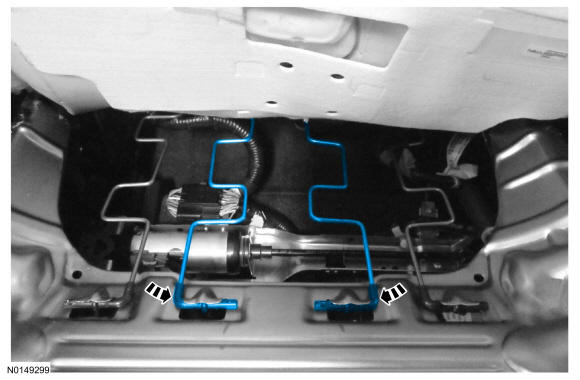

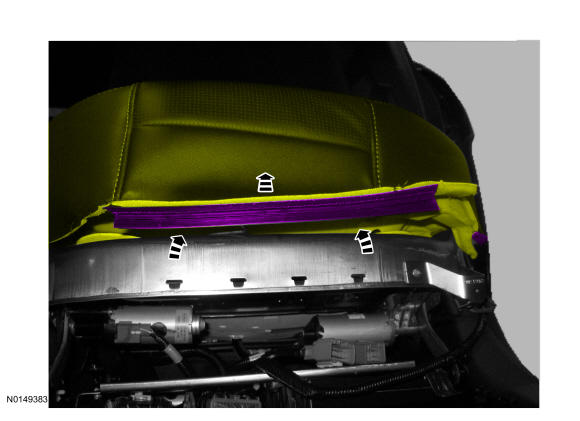

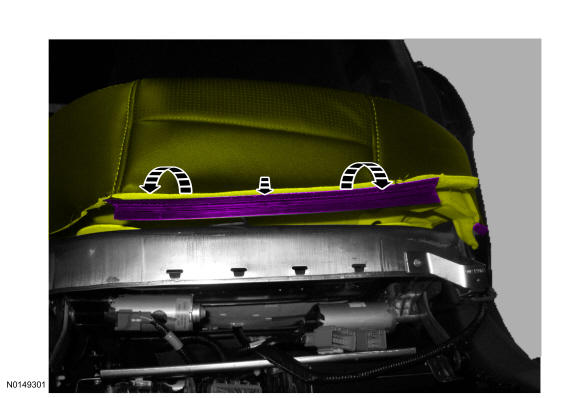

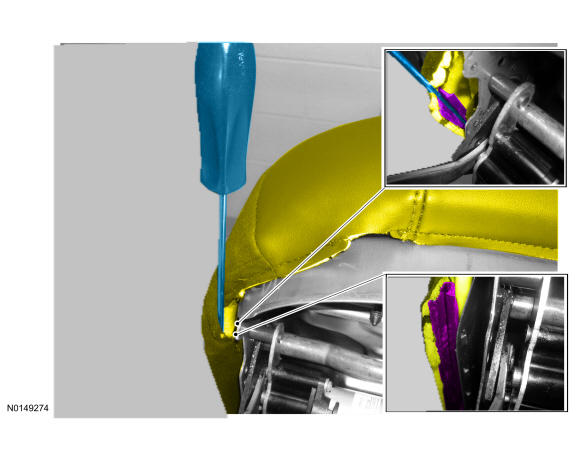

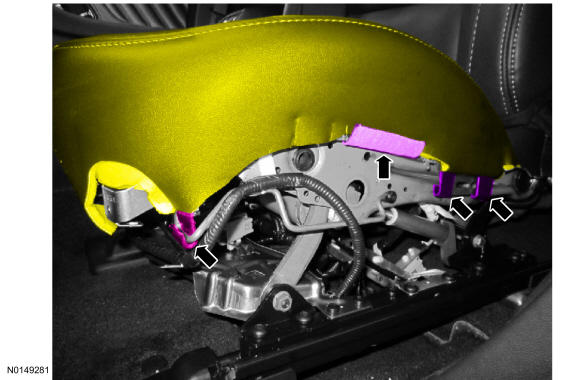

NOTE: Note the position of the cushion support wires for installation.

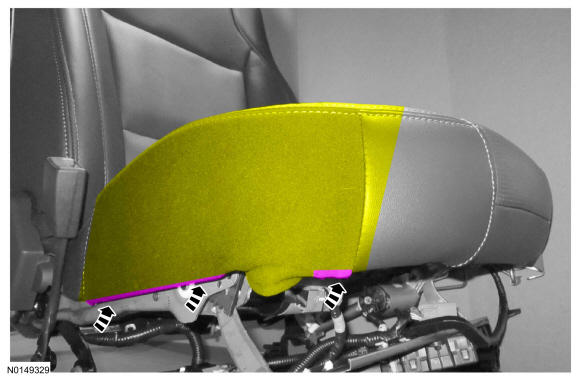

On both sides.

Courtesy of FORD MOTOR COMPANY
NOTE: Seat cushion wire harness take-outs will vary with seat option content. Note the wire harness routing, attachment points and connections to the horizontal seat motor and bracket for installation.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

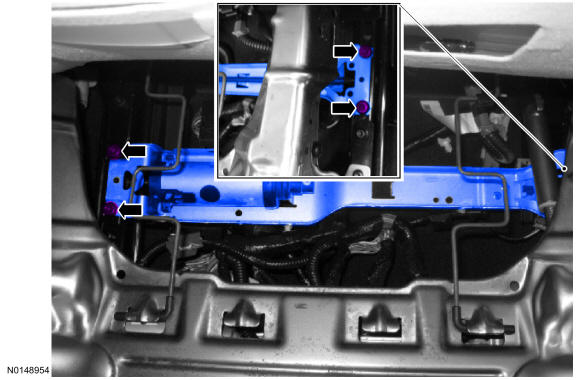

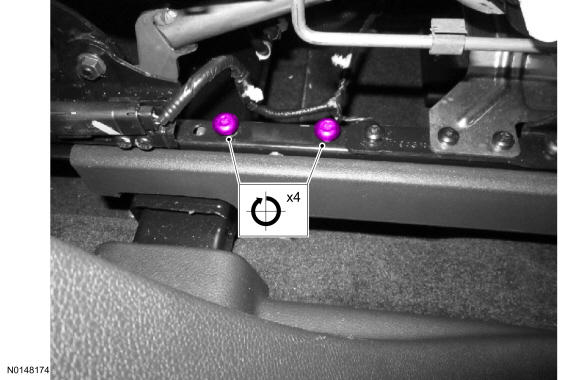

NOTE: Pushing the seat forward or backward can aid in bolt hole alignment.

On both sides.

Courtesy of FORD MOTOR COMPANY

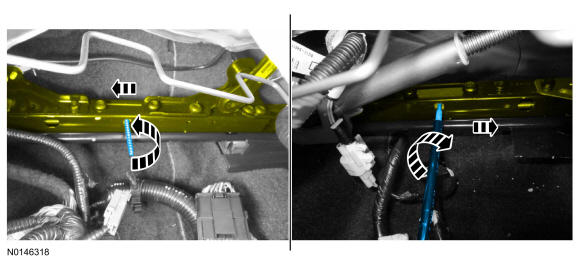

NOTE: When using a drill to move the seat track, do not move the seat track to its forward or rearward end of travel stops. Doing so can result in damage to the seat track requiring its replacement.

NOTE: Be sure to drive the seat track evenly or the track will bind during movement.

NOTE: Rotate the cables using 2 drills operating at similar speeds to most efficiently position the seat track.

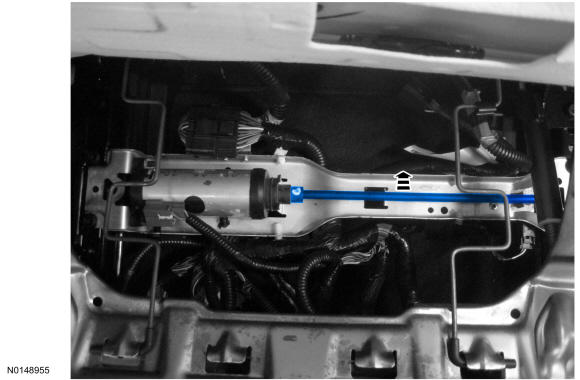

Insert both seat track cables then drive the inboard and outboard seat tracks forward until the rear mounting bolts are accessible. General Equipment: Drill(s).

Courtesy of FORD MOTOR COMPANY
Remove the front seat. Refer to Seat -- Front .
Install the front seat track motor. Refer to Seat Track Motor -- Front . Do not install the seat at this time.
- If equipped, transfer the seat position sensor. Refer to SEAT POSITION SENSOR
NOTE: Install as noted during removal.

On both sides.

Courtesy of FORD MOTOR COMPANY
If equipped with climate controlled seats.

Courtesy of FORD MOTOR COMPANY
If equipped, passenger seat with bladder OCS.

Courtesy of FORD MOTOR COMPANY
If equipped with Active Motion® massage.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY
NOTE: Connectors and location may vary due to vehicle configuration.

Courtesy of FORD MOTOR COMPANY
1. If equipped with Active Motion® massage.
2. -
3. -
4. -
Courtesy of FORD MOTOR COMPANY

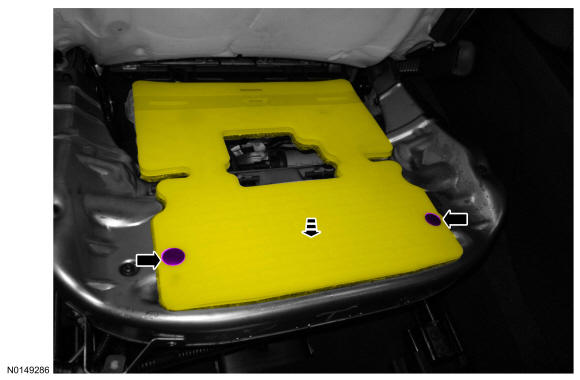

If equipped with Active Motion® massage.

Courtesy of FORD MOTOR COMPANY

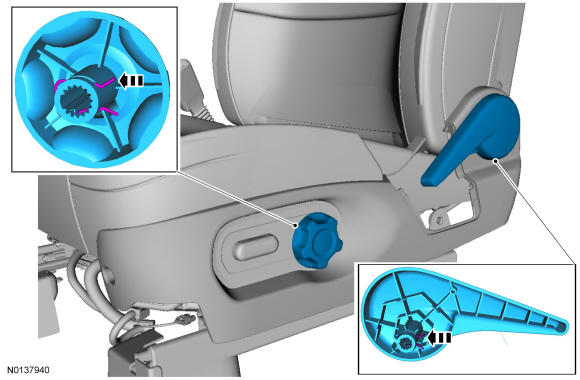

If equipped.

Courtesy of FORD MOTOR COMPANY
Install the front seat. Refer to Seat -- Front .
If a passenger seat with a bladder OCS has been serviced, do not prove out the SRS within the seat installation procedure. Proceed to the next step here after the seat has been installed in the vehicle and repower has been done.
For a passenger seat with a bladder OCS, carry out the OCS reset. Refer to GENERAL PROCEDURES .
If equipped with memory seat, operate the horizontal motor in both directions through the full range of travel to allow the DSM to correctly register stop positions and prevent premature stopping points after the repair is complete.
