Seat Backrest - Rear, 40 Percent: Disassembly

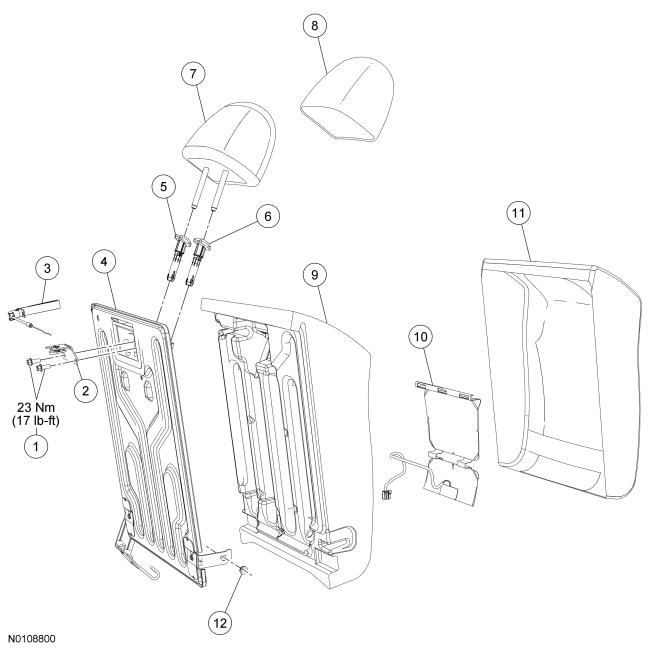

| Item | Part Number | Description |
|---|---|---|
| 1 | W505263 | Latch-to-backrest frame bolts (2 required) |
| 2 | 61383 | Backrest latch |
| 3 | 624A94 | Latch release cable |
| 4 | 613A39 | 40 percent backrest frame |
| 5 | 610A16 | LH head restraint guide sleeve |
| 6 | 610A18 | RH head restraint guide sleeve |
| 7 | 611A09 | Head restraint |
| 8 | 501A04 | Head restraint cover |
| 9 | 66801 | Backrest foam pad |
| 10 | 14D696 | Backrest heater mat |
| 11 | 66601 | Backrest cover |
| 12 | -- | Grommet |
- Remove the rear seat backrest. For additional information, refer to Seat Backrest -- Rear in this information.
- Remove the 2 head restraint guide sleeves. For additional information, refer to Head Restraint Guide Sleeve -- Front in this information.
- Release the tabs and remove the pivot grommet.
- If equipped, separate the heater mat electrical connector.
- Disengage the backrest cover J-clip at the bottom, separate the hook-and-loop strips and disengage the retainers on each side.
- Remove the backrest frame from the foam pad.
- Route the latch release strap out of the backrest cover.
-
NOTE: Use care when separating the backrest cover wires from the backrest foam pad clips, or the clips can be torn from the backrest foam pad.NOTE: Use care when separating the backrest cover from the hook-and-loop strip, or the hook-and-loop strip may be torn from the backrest foam pad.
Release the hook-and-loop strips, disengage the wires from the clips and remove the backrest cover.
- Route the heated seat mat pigtail and connector out of the backrest cover (if equipped).
- Disengage the 2 cable retainers, remove the 2 bolts and latch.
