Power Point: Removal

NOTE: Power point cover may differ depending on location.

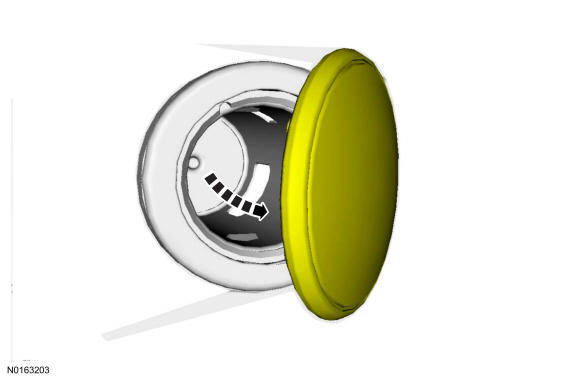

  1. Open the power point cover.
    GFD343483Courtesy of FORD MOTOR COMPANY

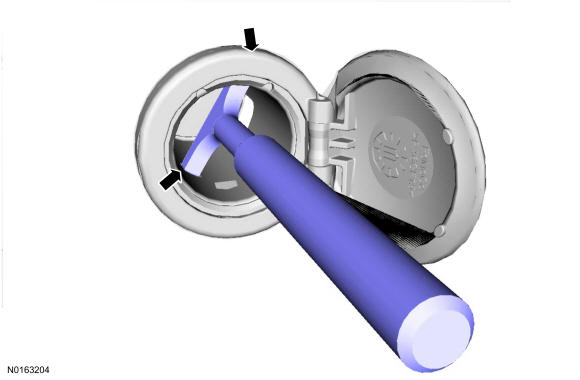

  2. Position the Power Point Socket Remover so that it engages in the adjacent slot.
    GFD343484Courtesy of FORD MOTOR COMPANY

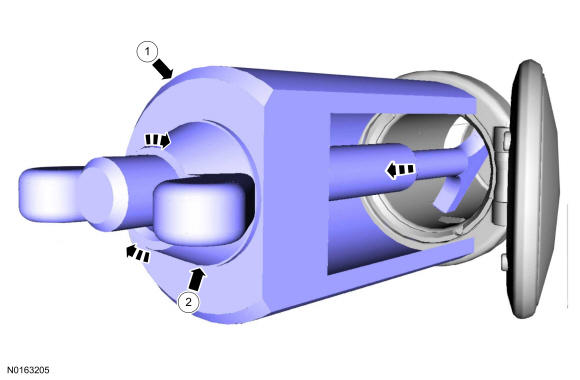

    1. Install the receiver cup.
    2. Install and tighten the wing nut.
    GFD343485Courtesy of FORD MOTOR COMPANY

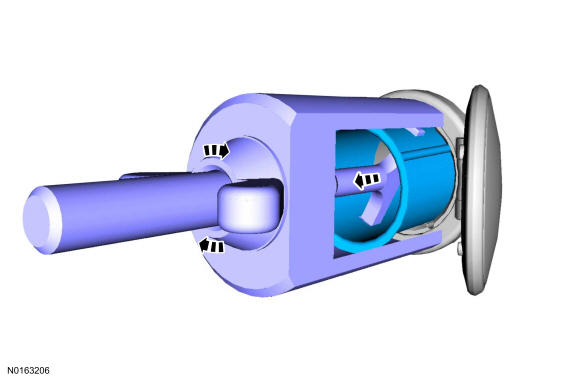

  4. Tighten the wing nut to pull the power point socket out of the retainer.
    GFD343486Courtesy of FORD MOTOR COMPANY
  5. Disconnect the electrical connector.
GFD343487Courtesy of FORD MOTOR COMPANY
