Console - Overhead
For information on Ford Color Coded Illustrations refer to OEM Color Coding

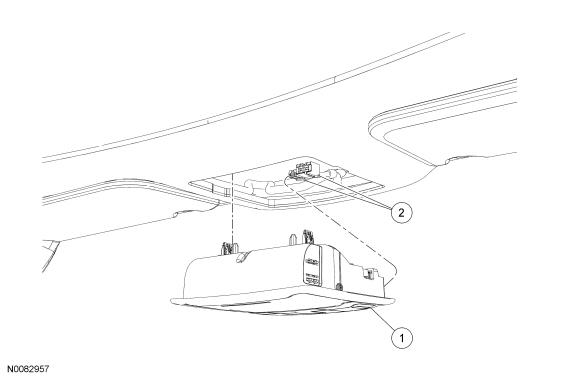

| Item | Part Number | Description |
|---|---|---|
| 1 | 519A70 | Overhead console |
| 2 | -- | Overhead console electrical connectors |
- Remove the overhead console.
- Pull the rear of the overhead console downward and then rearward.
- Disconnect the electrical connectors.
- To install, reverse the removal procedure.
