Glove Compartment Lock Cylinder
For information on Ford Color Coded Illustrations refer to OEM Color Coding .

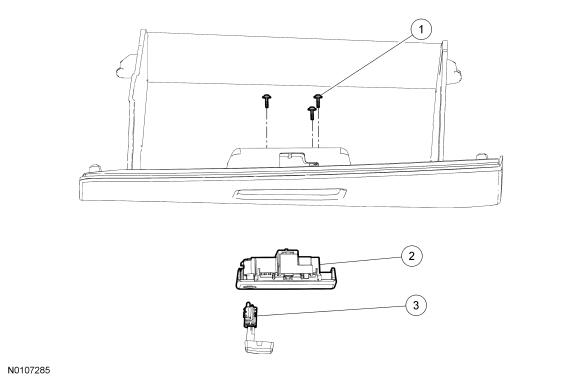

| Item | Part Number | Description |
|---|---|---|
| 1 | W701679 | Glove compartment latch screws (3 required) |
| 2 | 6306072 | Glove compartment latch |
| 3 | 5406082 | Glove compartment lock cylinder |
- Open the glove compartment.
- Remove the 3 glove compartment latch screws.
- With a firm, quick motion, pull on the glove compartment latch handle to remove the latch from the glove compartment.
- Insert a key into the glove compartment lock cylinder and place in the unlock position.
- Using a suitable tool (such as a small flat-bladed screwdriver), press in on the glove compartment lock cylinder tumbler.
- Pull out on the key and lock cylinder to remove the lock cylinder from the latch.
- To install, reverse the removal procedure.
