Muffler and Tailpipe: Removal

1. Remove the rear bolts from the deflector - rear axle air.

   Torque: 80 lb.in (9 Nm)

2. Remove the push pin retainers.
3. Remove the front bolts from the deflector - rear axle air.

   Torque: 22 lb.ft (30 Nm)

4. Remove the deflector - rear axle air rivet style push pin retainers.
5. Remove the deflector - rear axle air.

Courtesy of FORD MOTOR COMPANY

Disconnect the LH and RH tailpipe actuator electrical connectors. Detach the wiring retainers.

Courtesy of FORD MOTOR COMPANY

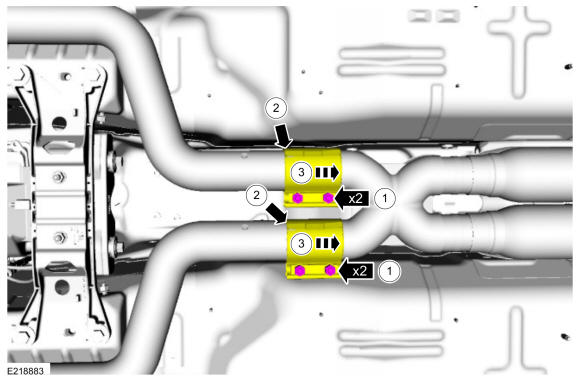

1. Loosen the LH and RH clamp nuts.

   Torque: 35 lb.ft (48 Nm)

2. Release the locking tabs on the clamps.
3. Position the clamps rearward.

Courtesy of FORD MOTOR COMPANY

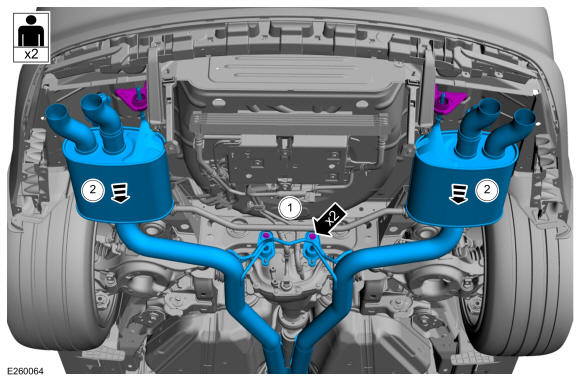

1. Remove the LH and RH rear exhaust hanger isolator bracket bolts from the rear subframe.

   Torque: 18 lb.ft (25 Nm)

2. Unhook the rear exhaust hanger isolators and remove the muffler and tailpipe.
