Removal And Installation: Radiator: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

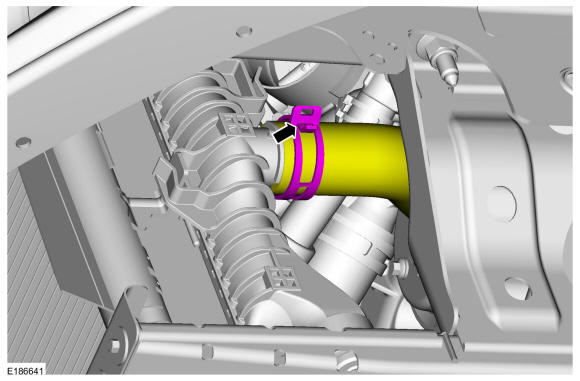

- Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
- Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .

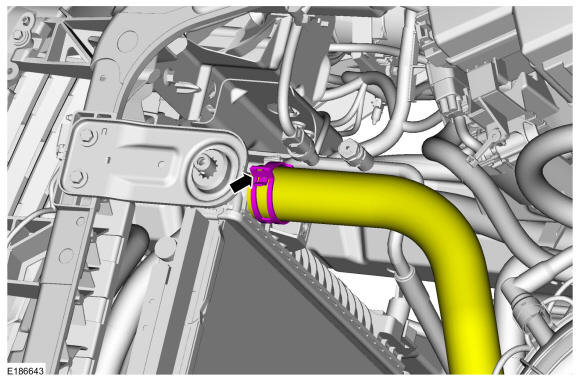

- Release the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

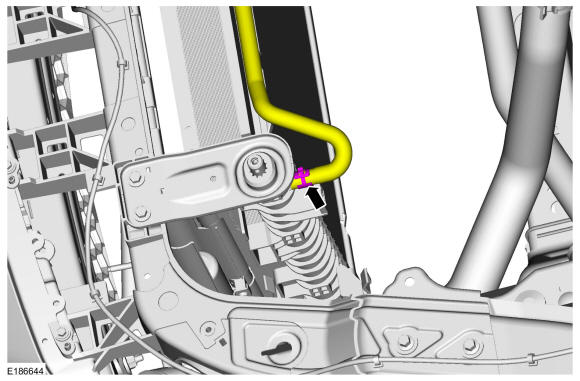

- Release the clamp and disconnect the upper coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

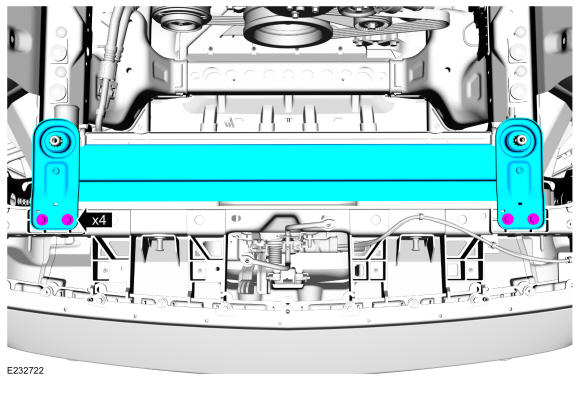

- Remove the bolts and the upper radiator support bracket.
Torque: 97 lb.in (11 Nm)
-
NOTE: Front bumper removed for clarity.
- Position the radiator towards the engine.

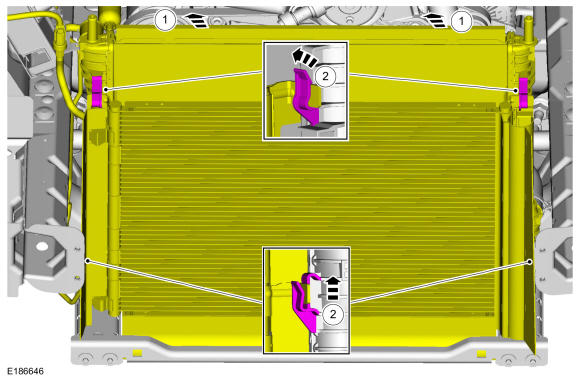

- Release the upper tabs and position the A/C condenser aside.

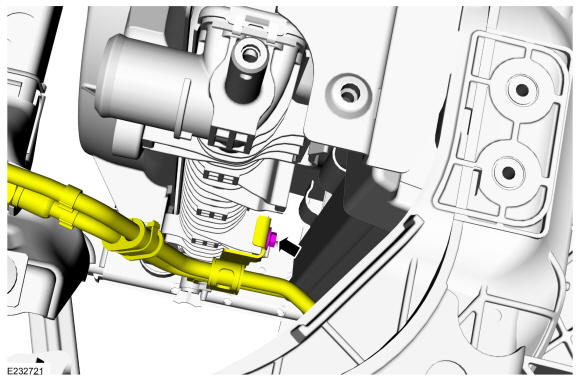

- If equipped. Remove the transmission cooler tube bracket bolt.
Torque: 53 lb.in (6 Nm)
-
NOTE: Front bumper removed for clarity.

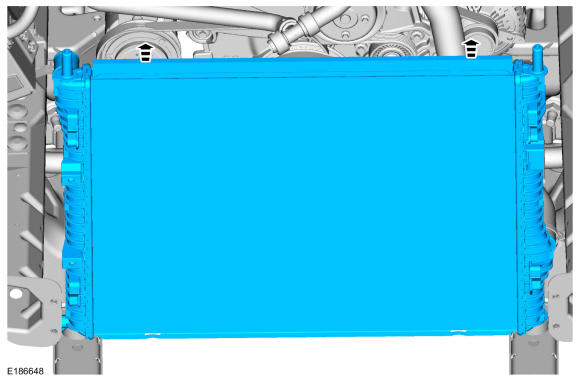

Remove the radiator.
