Coolant Pump: Installation
WARNING: This page is about a different variant/trim than selected.
-
NOTE: This step is only necessary when installing a new component.

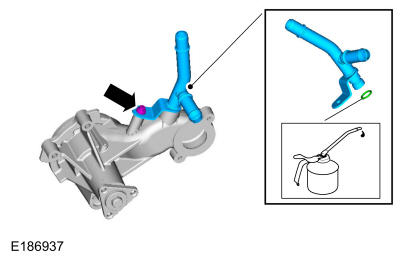

- Install a new O-ring seal on the heater outlet tube and lubricate it with clean engine coolant.
Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
- Install the heater outlet tube and the bolt.
Torque: 89 lb.in (10 Nm)
- Install a new O-ring seal on the heater outlet tube and lubricate it with clean engine coolant.

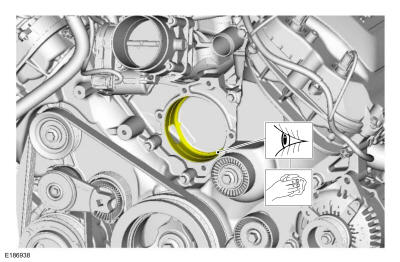

- Inspect the sealing surfaces and clean with metal surface prep wipes.
Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
-
NOTE: Align the bolt holes with the bosses prior to insertion of the coolant pump and insert the pump straight into the coolant pump cavity. Do not rotate the coolant pump once installed into the coolant pump cavity or the O-ring seal can be damaged, causing the coolant pump to leak.

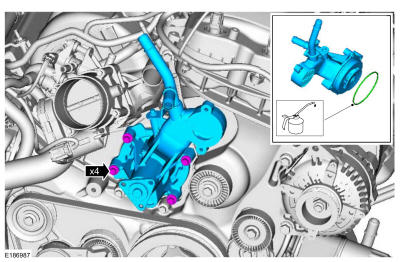

- Install a new O-ring seal and lubricate it with clean engine coolant.
Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
- Install the coolant pump and tighten the bolts in 2 stages.
Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 60°
- Install a new O-ring seal and lubricate it with clean engine coolant.
-

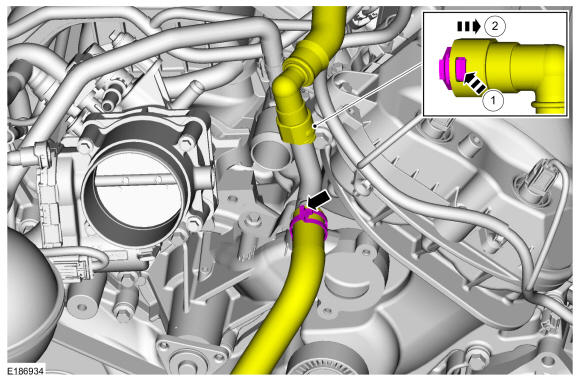

- Connect the lower degas bottle hose to the heater outlet tube and position the clamp. Use the General Equipment: Hose Clamp Remover/Installer
- Connect the heater outlet hose to the heater outlet tube.
-
NOTE: Only tighten the bolts finger tight at this stage.

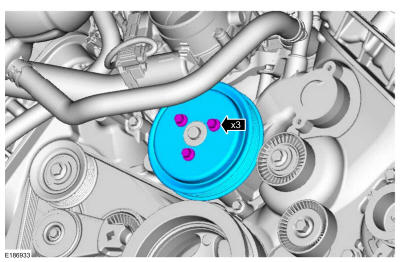

Position the coolant pump pulley and install the bolts finger tight.
- Install the thermostat housing. Refer to: Thermostat Housing .
- Remove the plastic from the A/C compressor belt.
- Install the accessory drive belt. Refer to: Accessory Drive Belt .

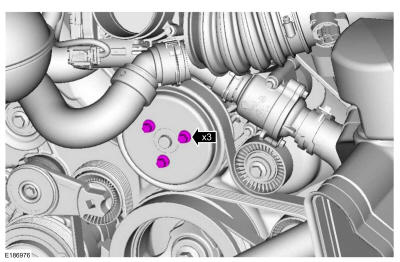

- Tighten the coolant pump pulley bolts.
Torque: 18 lb.ft (25 Nm)
- Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
- Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
